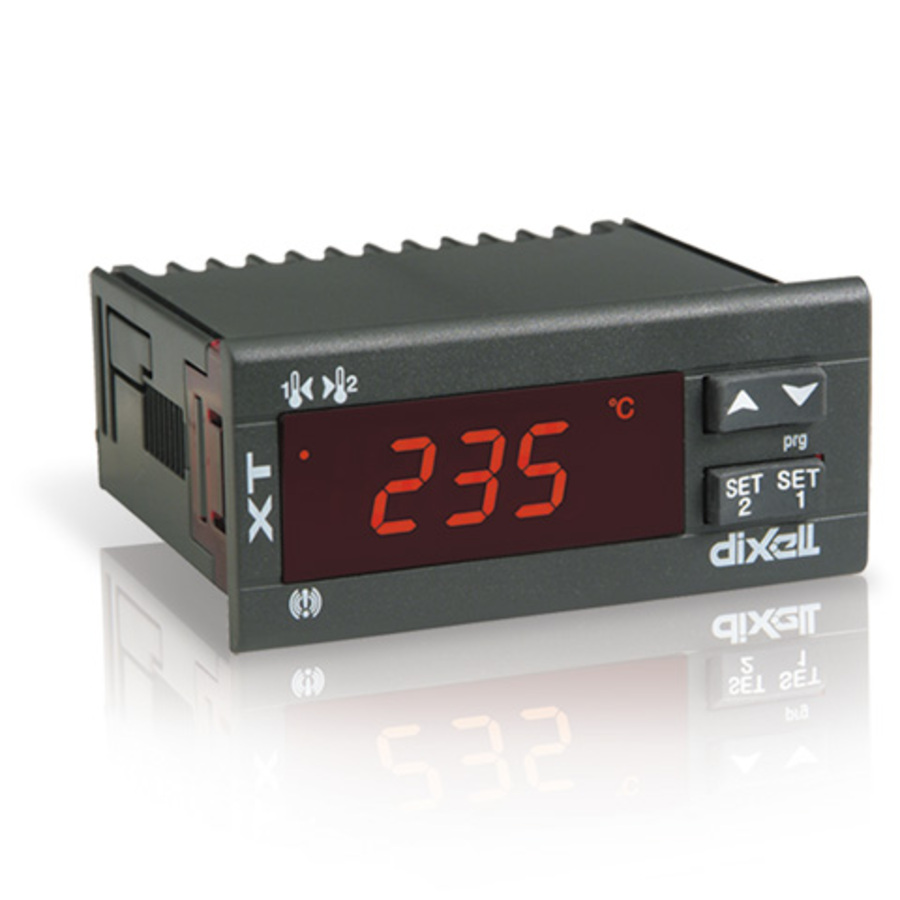

DIXELL ON/OFF CONFIGURABLE DIGITAL 2 STAGE CONTROLLER WITH MULTI-PROBE MANAGEMENT (NTC, PTC, Pt100, TcJ, TcK, TcS, 4÷20mA, 0÷1V, 0÷10V)

• Universal controller to manage temperature, humidity and pressure in both the industrial and commercial applications
• Stock optimization: thanks to the multi-probe inputs
• 1 or 2 stage ON/OFF or PID with direct or reverse action
• Temperature inputs: PTC, NTC, Pt100; thermocouple J, K or S by selecting the parameters
• Pressure or humidity inputs: 4÷20mA, 0÷1V or 0÷10V by selecting the parameters
• Direct line power supply. No external transformer required
• Display with integrated measurement unit (°C / °F / RH% / bar / PSI)
• Standard communication protocol ModBUS-RTU
• Hot key or Prog tool kit connector for a quick and easy programming
• 3VA max power absorption
• Display with red LED (10,5 mm high) and 5 icons
