Ranco Varifix Series Thermostat

• Designed for fast and easy service replacements
• Available for both refrigerator and freezer applications
• Capillary is crimped and sealed for maximum reliability
• High-level of performance

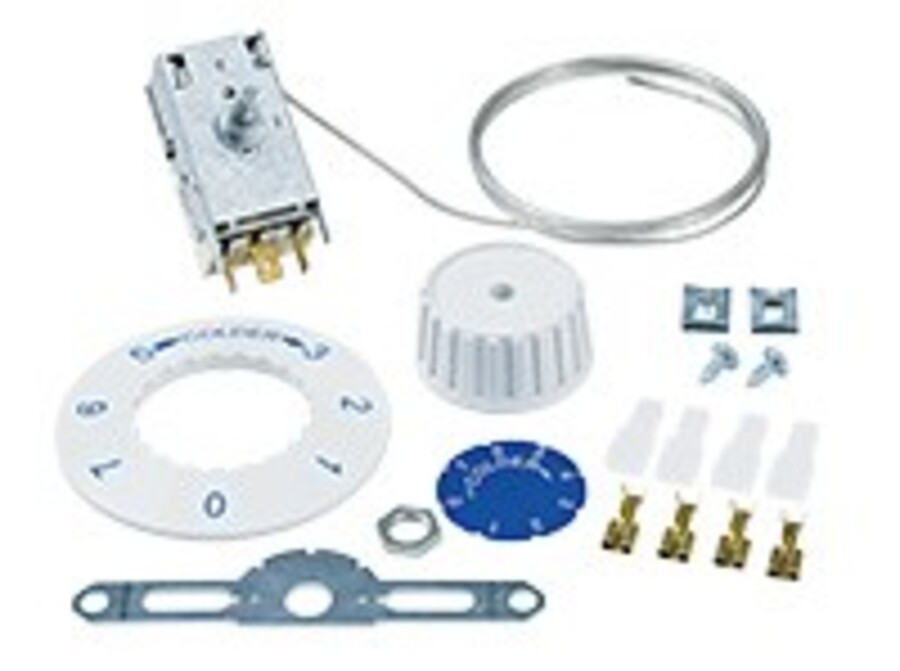

• Complete kit includes all necessary hardware
• Designed and packed to facilitate simple field replacement of refrigeration controls.
• Each Varifix model is coded for a particular type of refrigeration equipment.
• The Varifix type number on each thermostat indicates the application

Design Features:

• Multi-positional 3-piece dial knob - allows calibration on site
• Universal mounting bracket
• Selection of mounting screws terminal tags and insulators included

Attributes:

• Cold Cut-Out: -26°C
• Cold Cut-In: 3.5°C
• Warm Cut-Out: -11°C
• Warm Cut-In: 3.5°C
• Capillary Length: 1200mm

Applications:

• VC1 (VL1)  Compressor Refrigerator
• VA2 (VL2)  Absorption Refrigerator
• VF3 (VL3)  Freezer and Ice-cream Cabinets
• VP4 (VL4)  Push button Defrost Refrigerator
• VS5 (VL5)  Freezer - Standard Signal
• VR6 (VL6)  Freezer - Reverse Signal
• VB7 (VL7)  Bottle Cooler
• VW8 (VL8)  Window Air Conditioner
• VT9 (VL9)  Larder Refrigerator/2 Door Cabinet
• VT93   Long Capillary version of VT9
• VX0   Larder Refrigerator/2 Door Cabinet
• VTD9(VLD9)  Two temperature Refrigerator with Bypass Valve
