Includes Inlet Solenoid Valve

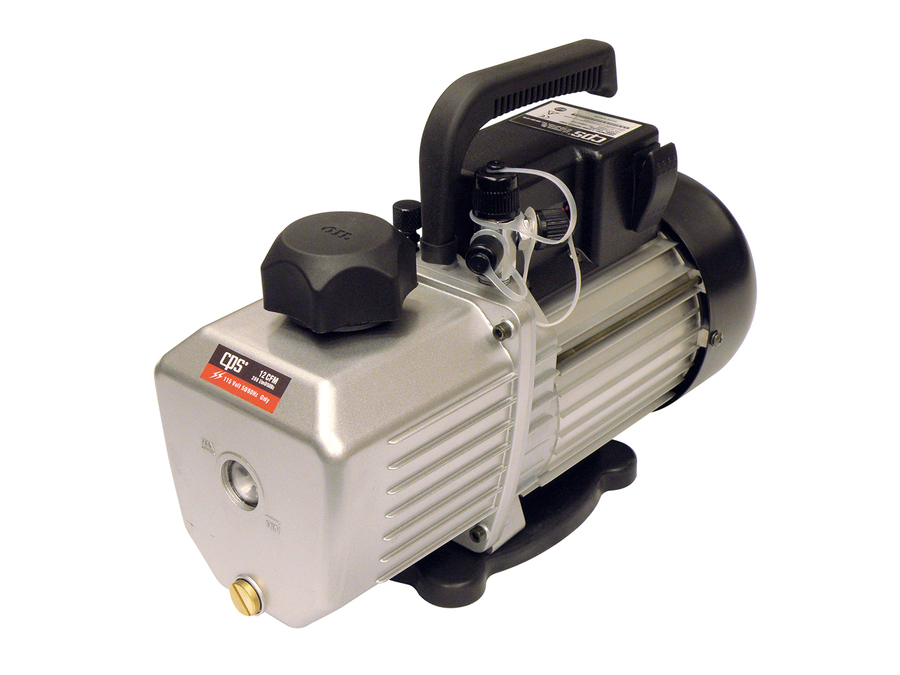

Sparkless (Ignition Proof) Vacuum Pump Series
CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.

KEY FEATURES:

• Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
• For use on refrigeration systems utilizing Class A1 (nontoxic, non-flammable), Class A2L
• (nontoxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic, flammable) and Ammonia (NH3)
• Air cooled, thermally protected motors encased in a durable aluminum housing
• Oil filled rotary vacuum pump cartridge construction
• Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
• Large double sealed oil sight glass
• Sealed start relay
• Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
• Ignition proof ON-OFF switch
• Rubber lined handle, skid-resistant rubber base
• Gas ballast valve for deeper vacuum
• UL listed

VPS6DU SPECIFICATIONS
Stage: 2
Ultimate Vacuum: 10 Microns
Refrigerant Class: A1, A2, A3
Dimensions: 13.1 x 5.5 x 10
Weight: 22.5 lb (10.2 kg)
Free Air Displacement: 6 CFM @ 60 Hz
Motor Size (HP)RPM @ 50 / 60 Hz: 1/2 HP 3440 RPM
Voltage: 115V, 60Hz
Power Connection to Pump: 10’ Hardwired
Oil Capacity: 16 oz (470 ml)
