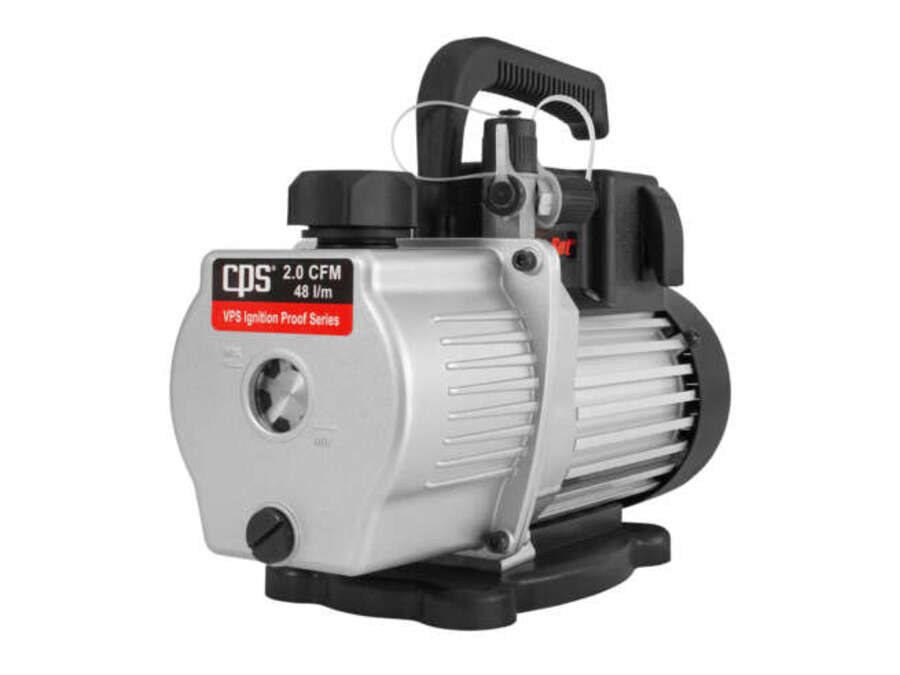

Sparkless (Ignition Proof) Vacuum Pump Series
CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight, and reliable vacuum pump, that meets ANSI ignition-proof standards.

KEY FEATURES:

Non-sparking brushless motor with sealed start components and ignition-proof ON/OFF switch
Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
Suits common refrigerants, HFO, R32/R1234 series, and ammonia vapors
Normally closed solenoid for vacuum protection
Exceptional ultimate vacuum rating as low as 10 microns
Advanced air cooled motor design for operation in high ambient temperatures
Proprietary oil mist free exhaust port cap for the clean, safe job environment
Gas ballast valve speeds achievement of deep vacuum
Multiple port connections for 1/4",3/8" and 1/2" ACME
Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
The solid rubber base provides extreme shock resistance
Sure-grip handle ergonomically designed for superior comfort and portability

VPS2DA SPECIFICATIONS
Stage: 2
Ultimate Vacuum:10 Microns
Refrigerant Class: A2L, A3
Free Air Displacement: 48 l/m @ 50 Hz
Motor Size (HP)RPM @ 50 / 60 Hz: 1/4 HP
Voltage: 220-240V (50Hz)
Power Connection to Pump: 3 Metre Hard wired
