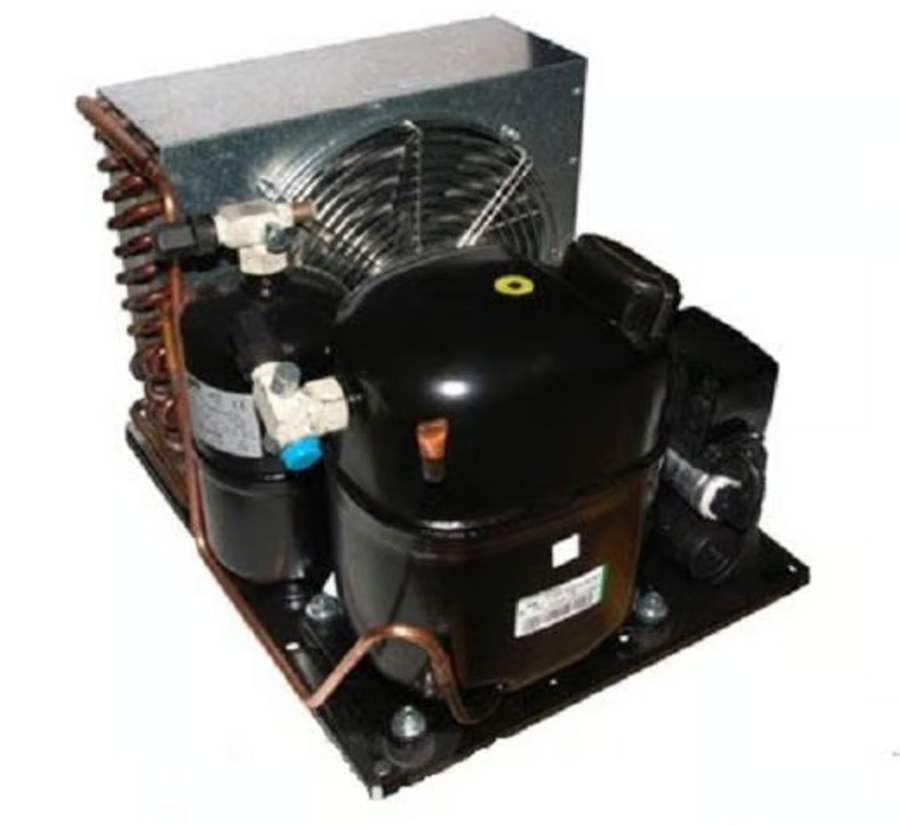

Embraco Condensing Unit - UNT2212GK

UNT2212GK

Product Description

DELIVERING THE HIGH PERFORMANCE THE MARKET NEEDS

Developed for harsh Australian conditions, Embracos new complete condensing units are a robust and reliable line up, rated up to 43°C ambient temperature.  Designed around your application, Embraco condensing units are suitable for reach ins, undercounters, prep tables, freezers and cold rooms; as well as other food service, food retail and hospitality refrigeration applications.

KEY FEATURES

  • Ease of installation
  • Designed to work up to 43°C ambient
  • Complete capacity range up to 1.5Hp
  • Oversized condenser for high ambient condition
  • High quality Embraco compressor

Resources

Condensing Units

Condensing Units

815.80 KBPDF

Tech Specification

  • Width 395mm
  • Depth 494mm
  • Height 324mm
  • Weight 34kg
  • Suction Connection 12.7
  • Discharge Connection 9.525
  • Supply Power 220 - 240/1
  • Rated Load 5.75amps
  • Locked Rotor Amps 33amps
  • Condenser Fan Qty 1
  • Condenser Fan Diameter 275mm
  • Condenser Fan Type AC
  • Digital Compressor N
