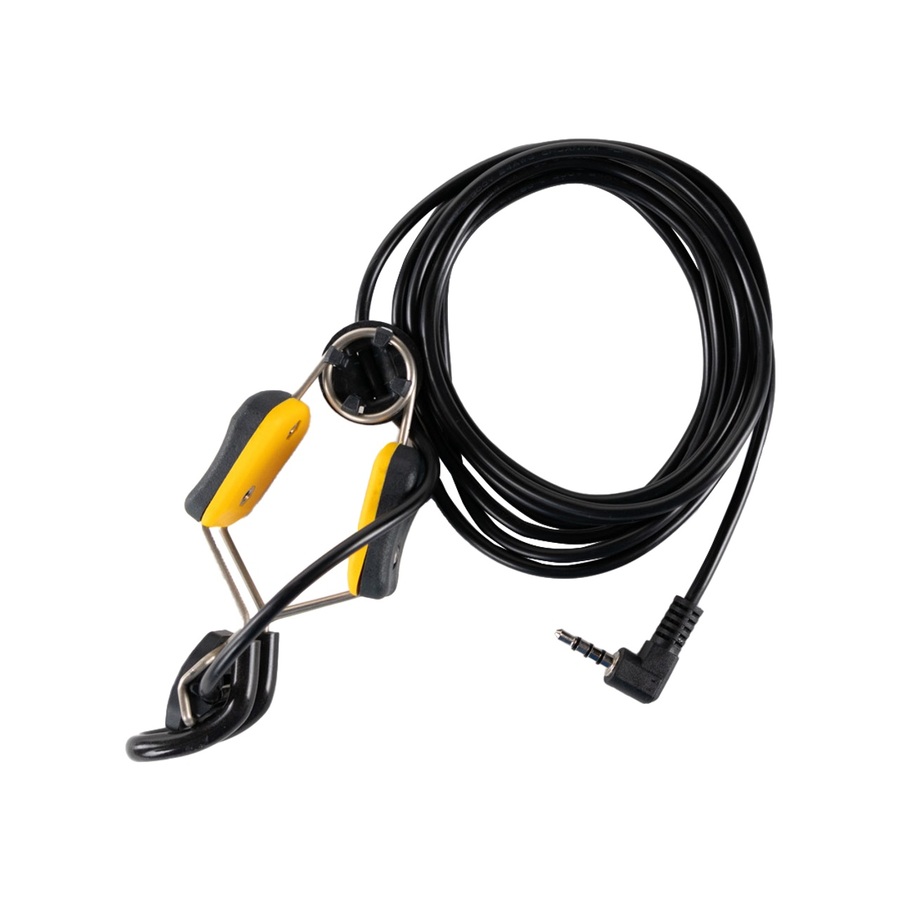

PTC900 Compatible Temperature Clamp: Precision Monitoring Made Easy

Introducing the PTC900 compatible Temperature Clamp – The Temperature Clamp features minimal thermal mass and a thermally isolated contact sensor that aids in improved response times and highly accurate temperature readings. Capable of fitting pipes ranging in diameter from ⅛ inch to 1 ⅝ inches, it also has a detachable temperature sensor that makes it highly versatile and compatible with pipes of any size.

Your essential tool for accurate measurements and remote monitoring in AC/R system service. With its advanced features and intuitive controls, the PTC900 simplifies complex HVAC/R diagnostics and ensures you get the job done efficiently and effectively.

Temperature Clamp Specifications

• Temperature Probe Dimensions:
  • Clamp Size: 106 x 25 x 46 mm
  • Probe Size: .22 x 20 x 10 mm
  • Pipe Size Compatibility: 1/8 in. to 1 ⅝ in.
  • Cable Length: 6 ft. (1.82 m)
• Water Resistance: IP67 *clamp only
• Probe Operating Temperature: -20 °C to 55 °C
• Storage Temperature: -20 °C to 60 °C
• Sensor Operating Range: -40 °C to 105 °C
• Temperature Accuracy:
  • ±.25 °C at 25 °C
  • ±1 °C -40 °C to 105 °C
