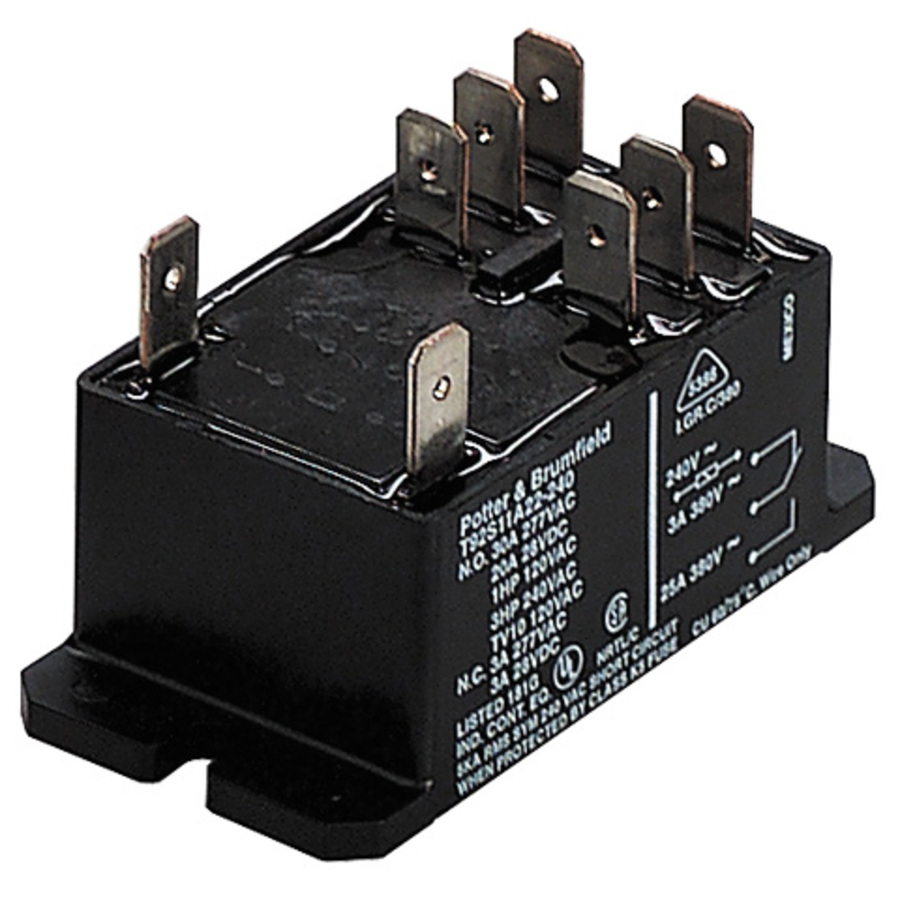

DIXELL RELAY

Relay with a 30A current (3HP/240Vac or 1HP/110Vac) suitable for all those applications where the load current is higher than the rating value of the relays mounted on the instruments.

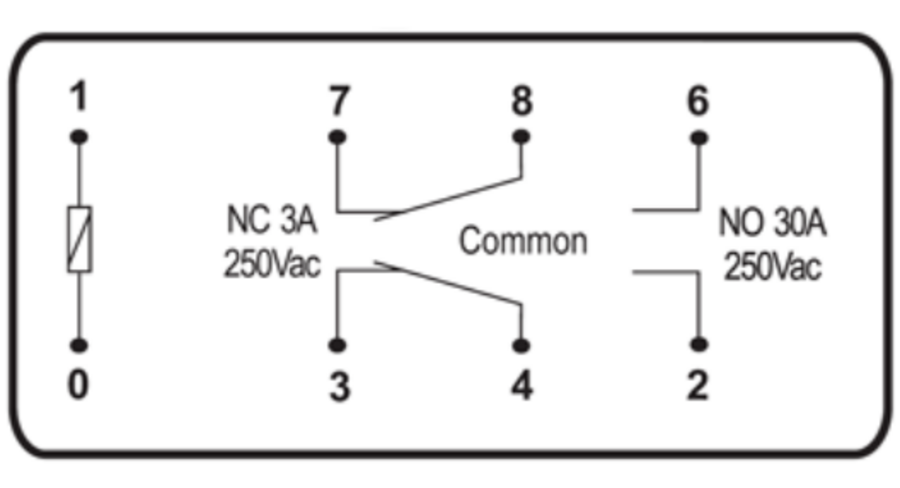

• Contacts: 2C/O - 2N/O
• Rated current: 30/3 (NO/NC)
• Rated/max. voltage: 250/480Vac
• Rated breaking capacity: 7500VA
• Nominal coil voltage: 240Vac
• Nominal coil power: 1.7W/4VA
• Coil contact: fast-on: 8mm
• Dimensions: 30,5x52,3x34,6mm
• Ambient temperature: -40÷65°C (-40÷149°F)
