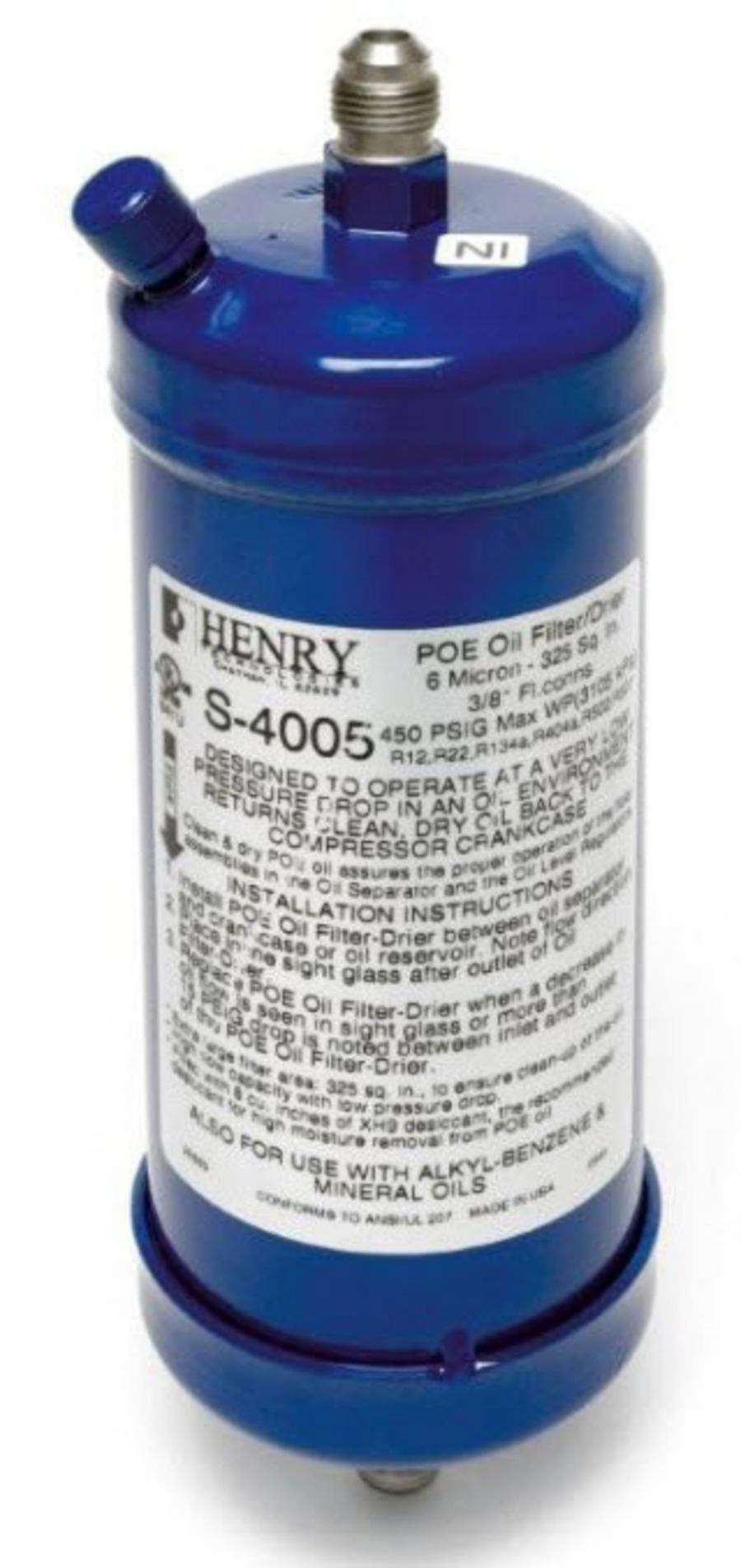

Henry Oil Filter/Drier 3/8MSAE

The function of an Oil Filter is to remove system debris from the refrigerant
oil. The function of an Oil Filter Drier is to remove both system debris and
moisture from the refrigerant oil. Their purpose is to protect compressors and
oil level regulators from damage.
Applications
The Henry Technologies S-4004 oil filter and S-4005 oil filter drier can be
used in both Low and High Pressure Oil Management Systems. Models are
suitable for HCFC and HFC refrigerants along with their associated oils.
The unique drying features of the S-4005 model are particularly suited for
systems using POE oil. This type of oil is more hydroscopic than mineral oil.
This means that POE oil absorbs moisture at a much higher rate. Moisture
in a refrigeration system can produce problems and/or harmful conditions.
One S-4004 or S-4005 model can be fitted in the oil return line between the
oil separator and oil reservoir, instead of fitting one oil strainer per oil level
regulator. These models will also remove more debris than traditional oil
strainers.

Main Features

S-4005 and SH-4005 models
•    High flow capacity with low pressure drop
•    Large filter area
•    Micronic filtration
•    High level of drying
•    Eliminates the need to fit individual oil return line strainers
Technical Specification
S-4005 model
Allowable operating pressure = 0 to 31 barg
Allowable operating temperature = -10oC to +100o C
Filter surface area = 3000 cm2
Filter particle retention = 6 micron
Drier = 131cm3 of XH9 desiccant SH-4005 model
Same as S-4005, except it has a higher operating
pressure.

Allowable operating pressure = 0 to 45 barg
