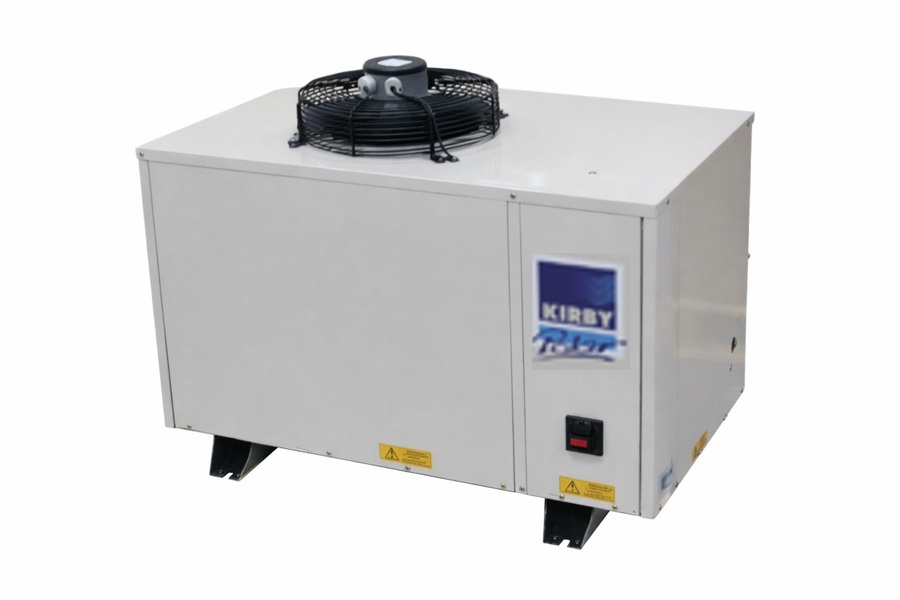

Kirby Polar Pack Low / Medium Temperature Condensing Unit

PPS031LMHA1-6

Product Description

COMPACT, ROBUST AND DESIGNED FOR HARSH AMBIENT CONDITIONS

Pre-wired and constructed around a small base, Polar Pack is easy to install.  Kirby’s outdoor condensing units have always been renowned for their durability and clever design. The Polar Pack is no exception.  Being a fully enclosed system, it can be installed indoors or outside.

KEY FEATURES

  • Wide model range between 1.6Kw and 11.0kW
  • True high ambient condenser design, with operating capacity up to 45°C
  • Removable panels for ease of servicing
  • Factory pre-wired for quicker, easier installation and commissioning
  • Phase failure protection module
  • Coil protection as standard on all models
  • Powder coated exterior for long wearing durability
  • Suction accumulator as standard on all low temperature models

Resources

Kirby Polar Pack Condensing Units Product Brochure

Kirby Polar Pack Condensing Units Product Brochure

2.41 MBPDF
Kirby Polar Pack - Installation Manual

Kirby Polar Pack - Installation Manual

793.67 KBPDF

Tech Specification

  • Width 750mm
  • Depth 660mm
  • Height 730mm
  • Weight 80kg
  • Suction Connection 15.88
  • Liquid Connection 9.52
  • Supply Power 380-420/3
  • Input Power 2125W
  • Rated Load 3.92amps
  • Max Contin. Current 4.72amps
  • Locked Rotor Amps 20.32amps
  • Condenser Fan Qty 1
  • Condenser Fan Diameter 300mm
  • Condenser Fan Type AC
  • Sound Power 70LwA
  • Sound Presure 50LpA
