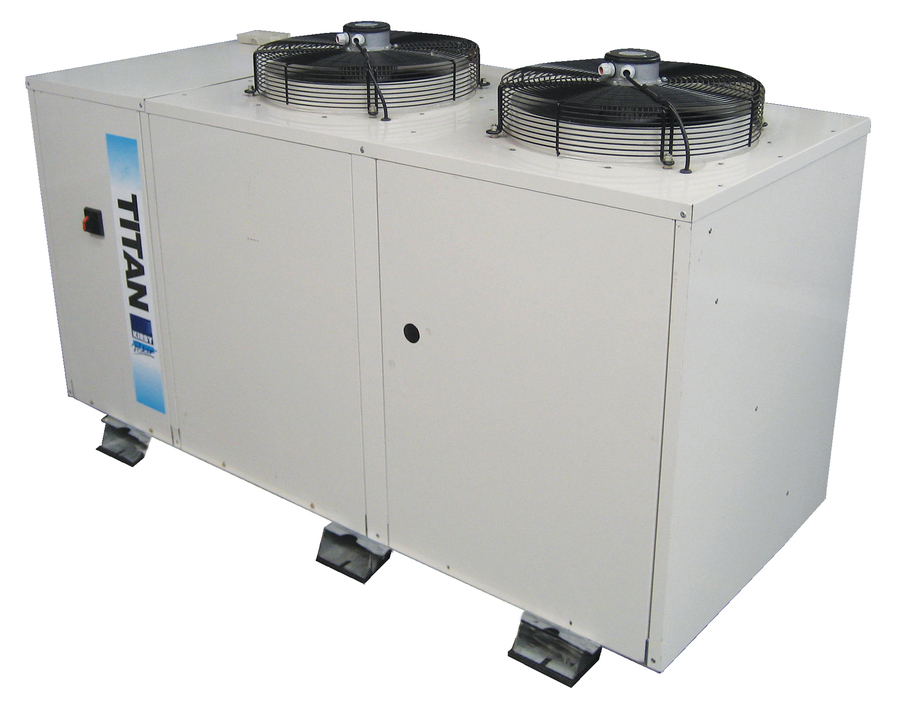

Kirby Titan Medium Temperature Condensing Unit

PPH170MHA1-2

Product Description

HUGE CAPACITY AND MAXIMUM PERFORMANCE IN HARSH CONDITIONS

A tough, compact and robust commercial condensing unit, the Kirby Titan offers impressive performance and capacity within a small footprint.

Pre-wired for convenient installation, Kirby Titan range thrives in harsh ambient conditions and under heavy loads.  Being a fully enclosed system, it can be installed indoors or outside.

And because it’s from Kirby, Titan has an enviable reputation for toughness, efficiency and reliability.

KEY FEATURES

  • Impressive capacity ranging from 12kW to 41kW

  • Enhanced compressor technology

  • Designed for harsh conditions up to 45°C

  • Quiet and efficient operations

  • Easy to service

  • Fast installation

  • Fully pre-wired

  • Fan speed control

  • Coil protection as standard

Resources

Kirby Titan - Product Brochure

Kirby Titan - Product Brochure

1.63 MBPDF
Kirby Titan - Installation Manual

Kirby Titan - Installation Manual

748.41 KBPDF

Spare Parts

  • Danfoss KP36 Pressure Switch
  • Vertical Receiver -1"R/L -14.5Litres -3200KPA
  • Danfoss Recip.Comp. MTZ100-4V 3PH with SG&OE
  • EBM PAPST AC Axial Fan Motor - 450mm
  • Fan Speed Controller RGE-Z1N4-5

Tech Specification

  • Width 1846mm
  • Depth 840mm
  • Height 1094mm
  • Weight 235kg
  • Suction Connection 34.9
  • Liquid Connection 15.88
  • Supply Power 380-420/3
  • Input Power 7265W
  • Rated Load 12.83amps
  • Max Contin. Current 22amps
  • Locked Rotor Amps 90amps
  • Condenser Fan Qty 2
  • Condenser Fan Diameter 450mm
  • Condenser Fan Type AC
  • Sound Power 86LwA
  • Sound Presure 66LpA
