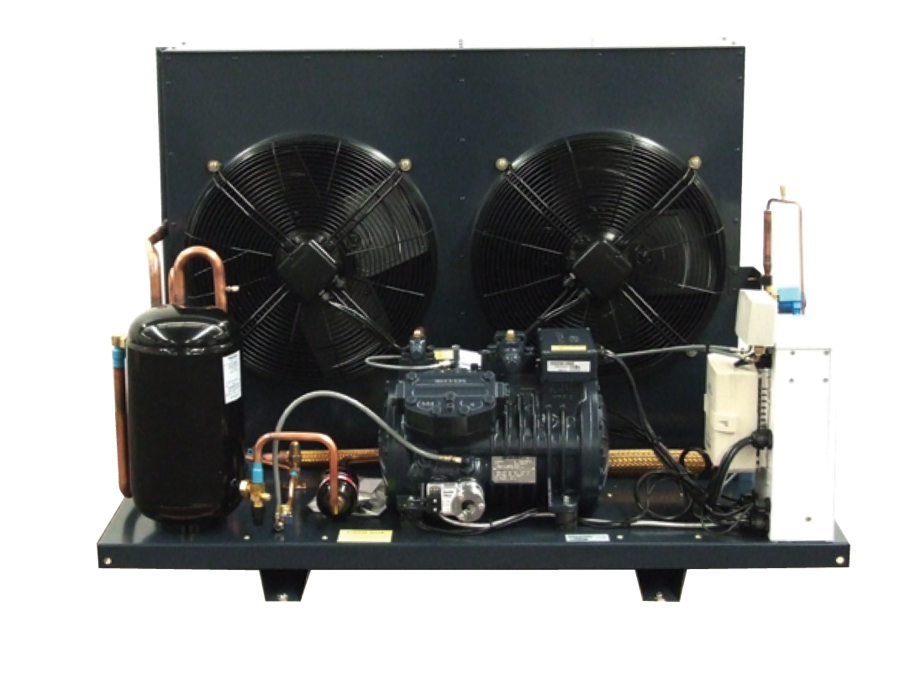

Kirby Commander Low / Medium Temperature Condensing Unit

PCS193LMA1-10

Product Description

QUIETER, MORE POWERFUL AND WITH GREATER ENDURANCE

Built smart, compact and tough the Kirby Commander range offers leading performance and efficiency without making a lot of noise.  External rotor fan motors and Dorin H series compressors set the standard for smooth quiet operation across a wide application range.  Ultimate reliability comes standard when you combine Kirby and Dorin – trusted to handle the extremes of our climate.

KEY FEATURES

  • Wide operational envelope at high ambient conditions
  • Reduced operating noise levels set a new standard
  • 50% capacity control available as an option on all models
  • Suitable for inverter operation from 25 to 65Hz
  • Optimised Coil Design incorporating Inner Grooved Tube for enhanced heat transfer
  • Proven external rotor fan motors for long life and increased efficiency
  • Fan speed control as standard
  • Powder coated Galvabond base and condenser casing
  • High efficiency oil separator with Internal float
  • Dual pressure control
  • Liquid line drier and sight glass
  • Separate electrical box

Resources

Kirby Commander - Product Brochure

Kirby Commander - Product Brochure

1.91 MBPDF
Kirby Commander (> 5HP) - Installation Manual

Kirby Commander (> 5HP) - Installation Manual

1.93 MBPDF

Tech Specification

  • Width 1400mm
  • Depth 900mm
  • Height 882mm
  • Weight 205kg
  • Suction Connection 34.9
  • Liquid Connection 15.9
  • Supply Power 380-420/3
  • Input Power 8690W
  • Rated Load 16.3amps
  • Max Contin. Current 17.6amps
  • Locked Rotor Amps 66.1amps
  • Condenser Fan Qty 2
  • Condenser Fan Diameter 450mm
  • Condenser Fan Type AC
  • Sound Power 81LwA
  • Sound Presure 61LpA
