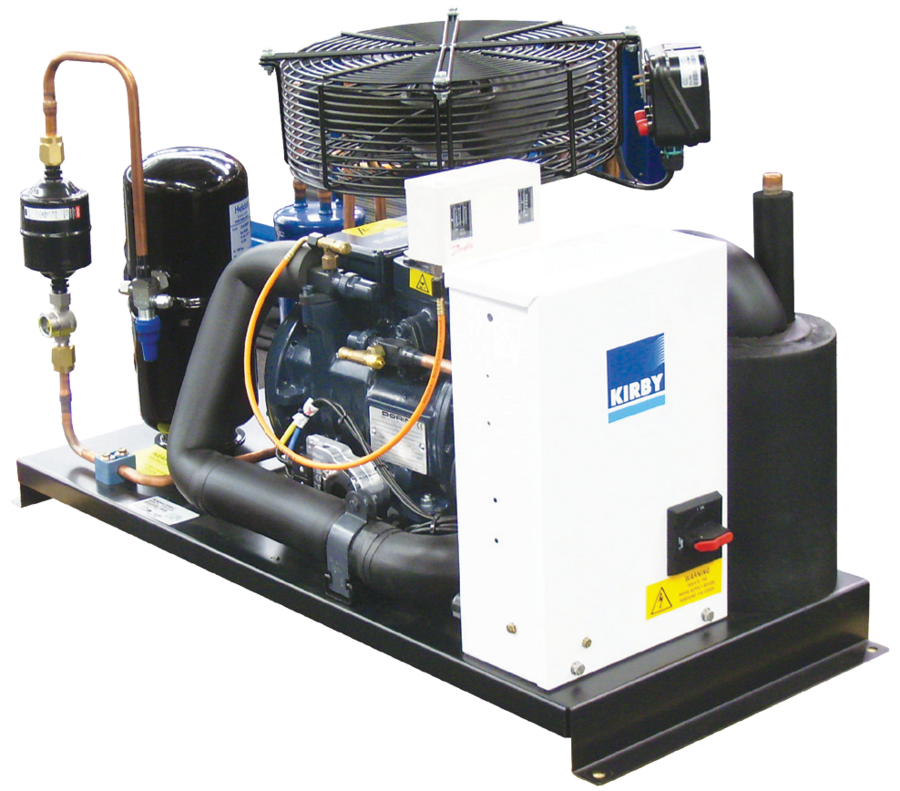

Kirby Semi Hermetic 2 Cylinder Basic Unit

PCS084LMHB-2

Product Description

A QUIETER, MORE POWERFUL RANGE

Built smart, compact and tough the Kirby Semi Hermetic 2 Cylinder Basic Unit range offers leading performance, efficiency, high durability and a quiet operation.

Powered by Dorin H Series compressors, Kirby Semi Hermetic 2 Cylinder Basic Units achieve high C.O.P values and high motor efficiency is made possible through smart design principals.  With ultimate reliability and ease of installation the Kirby Basic Unit design is tailored for the most difficult projects, and is easily connected to remote aircooled condenser such as the Kirby KRC.

KEY FEATURES

The Kirby Semi Hermetic 2 Cylinder Basic Unit range offers:

  • Compact with reduced operational weight

  • High performance Dorin H series compressors

  • Thermik internal motor protection

  • Crankcase heater

  • Single phase 240V units are supplied with a relay and capacitor box fitted

  • Powder coated finish

  • One piece copper tube design adapted for reliability

  • Oil separator

  • Dual auto HP/LP control and flexible lines

  • Liquid line drier and moisture indicator

  • Wooden skid part crate packing

Kirby Semi Hermetic 2 Cylinder Basic Units can be configured with the following options:

  • Liquid line solenoid valve

  • Head cooling fan assembly

  • Suction accumulator

  • Oil watch alarm control - compressor sump level

  • DOL electrical control panel IP44 - fully wired contactor/overload, circuit breaker and isolation switch

  • MP15 (3ph. units only)

Resources

Kirby 2 Cylinder Basic Units - Product Brochure

Kirby 2 Cylinder Basic Units - Product Brochure

3.03 MBPDF

Tech Specification

  • Width 1086mm
  • Depth 500mm
  • Height 631mm
  • Weight 102kg
  • Suction Connection 22.2
  • Discharge Connection 15.9
  • Liquid Connection 15.9
  • Supply Power 380-420/3
  • Rated Load 6.9amps
  • Max Contin. Current 9.4amps
  • Locked Rotor Amps 43.6amps
  • Sound Power 67.5LwA
  • Sound Presure 50.0LpA
