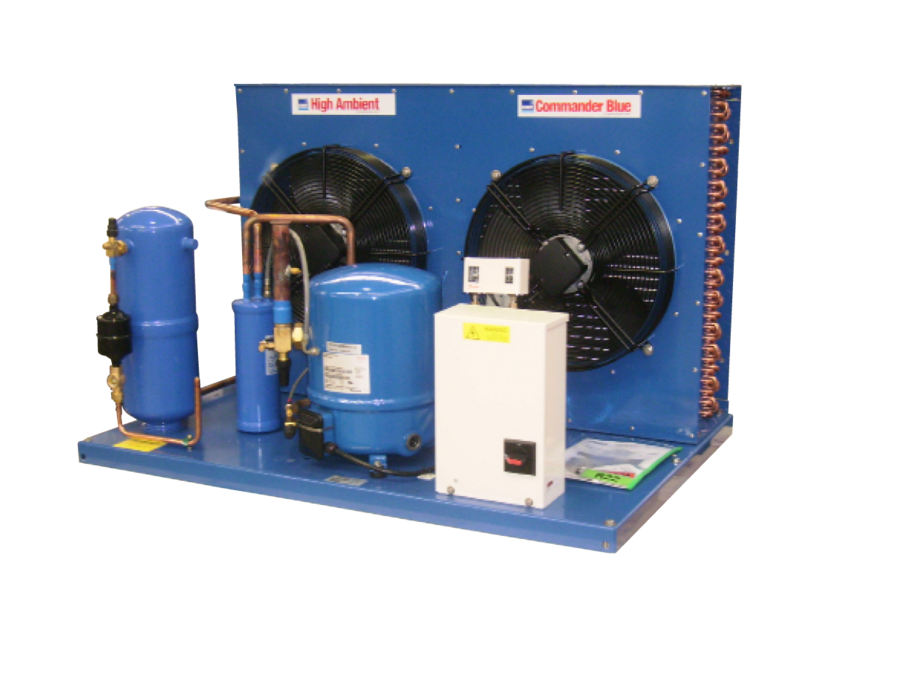

Kirby Commander Blue Medium Temperature Condensing Unit

PCH256MHA1-2

Product Description

TOUGH AND COMPACT - DESIGNED TO HANDLE HARSH AMBIENT CONDITIONS

Ideal for cool rooms, food service or food and beverage retail installations, The Kirby Commander Blue range has been built on the reliability and experience of the Aussie Blue Star condensing unit series that have served the industry for many years. The new Commander Blue range offers the same performance you have come to know and trust and in addition, includes standard features to help you get your job done quicker and easier.

Ultimate reliability comes standard when you choose Kirby – trusted for years to handle the extremes of our climate.

KEY FEATURES

  • Large condensers rated for 46°C ambient temperatures
  • High efficiency condenser fans with low noise external rotor motors
  • Internationally proven Maneurop compressors
  • Internal line break protection to ensure long life compressor motor operation
  • Oil sight classes, oil equalisation and crankcase heater as standard
  • Danfoss universal dual pressure control with flexible hose lines
  • MP15D phase and motor protector
  • Fully pre-wired for quick installation
  • Condenser fan speed control as standard
  • Pressure vessels conform to internationally recognised standards
  • Powder coated exterior for long wearing durability
  • Liquid line drier and moisture indicator as standard
  • Suction accumulator as standard (low temperature models)
  • High efficiency internal float oil separator as standard

Resources

Kirby Commander Blue (HA) - Installation Manual

Kirby Commander Blue (HA) - Installation Manual

712.82 KBPDF
Kirby Commander Blue - Product Brochure

Kirby Commander Blue - Product Brochure

3.53 MBPDF

Spare Parts

  • Danfoss KP36 Pressure Switch
  • Fan Axial Zhl 4P 1Ph 500Mm
  • Danfoss Recip.Comp. MTZ144-4V 3PH with SG&OE
  • Fan Speed Controller RGE-Z1N4-5

Tech Specification

  • Width 1610mm
  • Depth 910mm
  • Height 975mm
  • Weight 250kg
  • Suction Connection 1 3/8"
  • Liquid Connection 5/8"
  • Supply Power 380-420/3
  • Input Power 13230W
  • Rated Load 26.75amps
  • Max Contin. Current 34amps
  • Locked Rotor Amps 119amps
  • Condenser Fan Qty 2
  • Condenser Fan Diameter 500mm
  • Condenser Fan Type AC
  • Sound Power 86.45161531LwA
  • Sound Presure 66.45161531LpA
