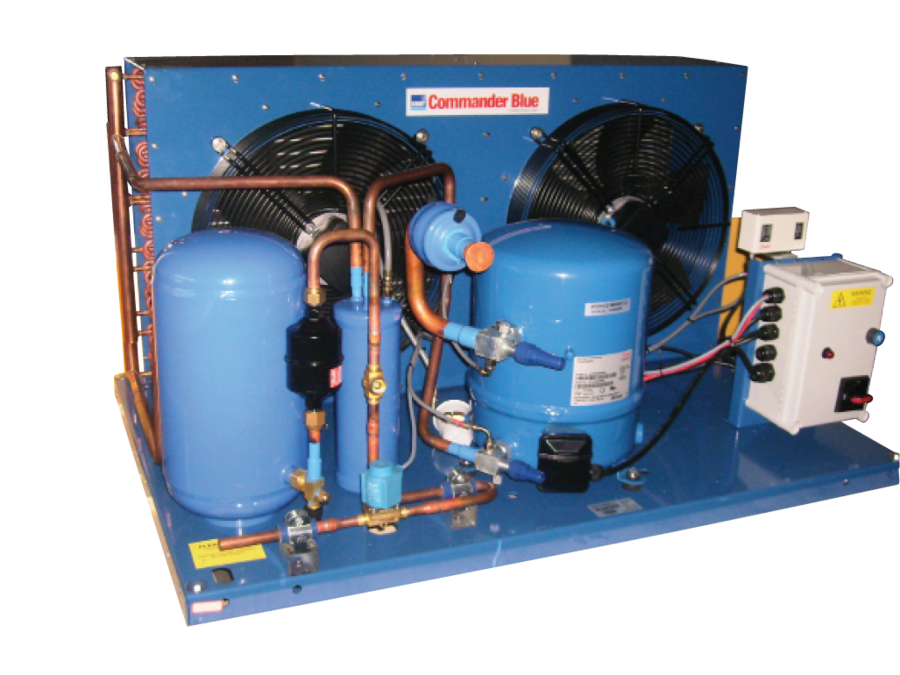

Kirby Commander Blue Low Temperature Condensing Unit

PCH051MHA1-2

Product Description

TOUGH AND COMPACT

With an impressive capacity, the Kirby Commander Blue condensing unit offers a tough, compact design that will handle tough conditions. It is ideal for use in dairy farms, cool rooms, food service and beverage retail installations.

The Kirby Commander Blue range has been built on the reliability and experience found in the Kirby condensing units that have served the industry for many years. The new Commander Blue range offers the same performance you have come to know and trust and in addition features extra components as standard to help you get your job done quicker and easier.

Ultimate reliability comes standard when you choose Kirby – trusted for years to handle the extremes of our climate.

KEY FEATURES

  • Large condensers rated for 38°C on R404A and 43°C on R134a
  • High efficiency condenser fans with low noise external rotor motors
  • Internationally proven Maneurop compressors
  • Oil sight classes, oil equalisation and crankcase heater as standard
  • Danfoss universal dual pressure control with flexible hose lines
  • Fully pre-wired for quick installation
  • Condenser fan speed control as standard
  • Pressure vessels conform to internationally recognised standards
  • Powder coated exterior for long wearing durability
  • Liquid line drier and moisture indicator as standard
  • Suction accumulator as standard (low temperature models)
  • High efficiency internal float oil separator as standard

Resources

Kirby Commander Blue - Product Brochure

Kirby Commander Blue - Product Brochure

3.53 MBPDF

Spare Parts

  • Danfoss KP36 Pressure Switch
  • Motor Ebm 4P 1Ph 350Mm Dia
  • Danfoss Recip.Comp. MTZ32-4V 3PH with SG&OE
  • Fan Speed Controller RGE-Z1N4-5

Tech Specification

  • Width 790mm
  • Depth 710mm
  • Height 555mm
  • Weight 61kg
  • Suction Connection 1/2"
  • Liquid Connection 3/4"
  • Supply Power 380-420/3
  • Input Power 3130W
  • Rated Load 5.6amps
  • Max Contin. Current 8.6amps
  • Locked Rotor Amps 25.6amps
  • Condenser Fan Qty 1
  • Condenser Fan Diameter 350mm
  • Condenser Fan Type AC
  • Sound Power 74LwA
  • Sound Presure 60.5LpA
