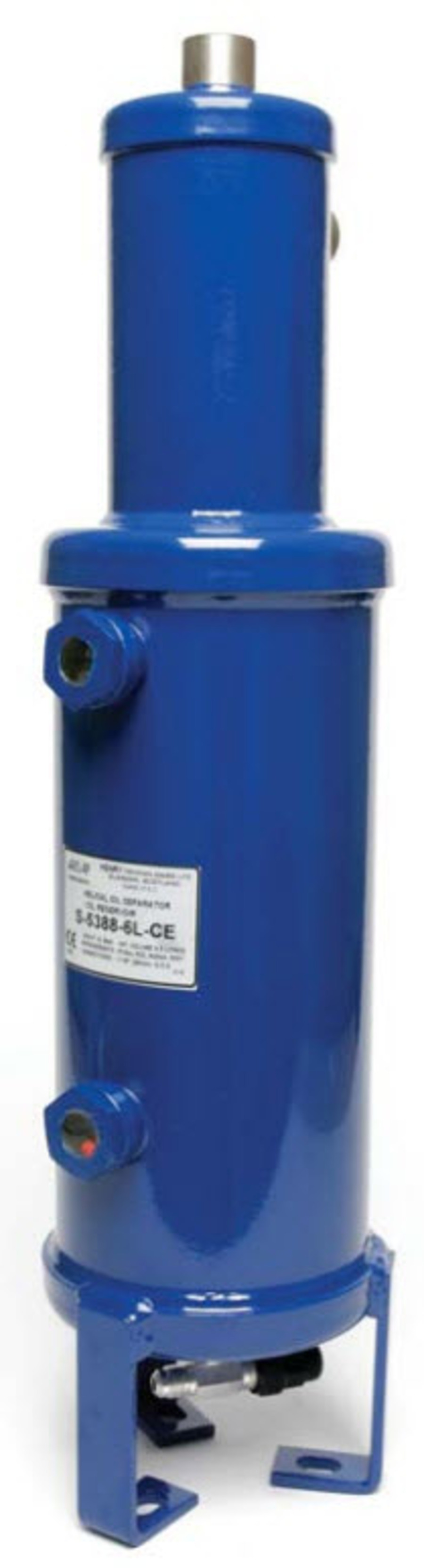

Henry Oil Separator 1"5/8ID x 219dia 540mm

OS79-1

Product Description

Oil separators are used in refrigeration systems that require the compressor
lubricating oil to be returned directly to the compressor crankcase under all
operating conditions. Using an oil separator will prevent lubricating oil from
circulating throughout the system with the refrigerant making the condenser
and evaporator more efficient.
Henry Impingement type oil separators are designed for maximum flow
with minimal pressure drop while efficiently removing oil suspended in the
refrigerant. Oil removal is achieved using stainless steel screens that have
been optimised for both flow and oil removal. A baffle plate allows separated
oil to de-aerate while remaining warm and viscous. A stainless steel ball float
and precision needle and seat are used to achieve automatic oil return to the
compressor crankcase.
Henry conventional oil separators are constructed from steel with solid copper
connections.
Manufacturing Standards
Manufactured in accordance with AS 2971
Safe Working Pressure: 3,200 kPa for models: 3210 - 6410 and above.
Safe Working Pressure: 4,200 kPa for models: 3210 - 6406S
                                                                           3210 - 6406
                                                                           3210 - 6408
