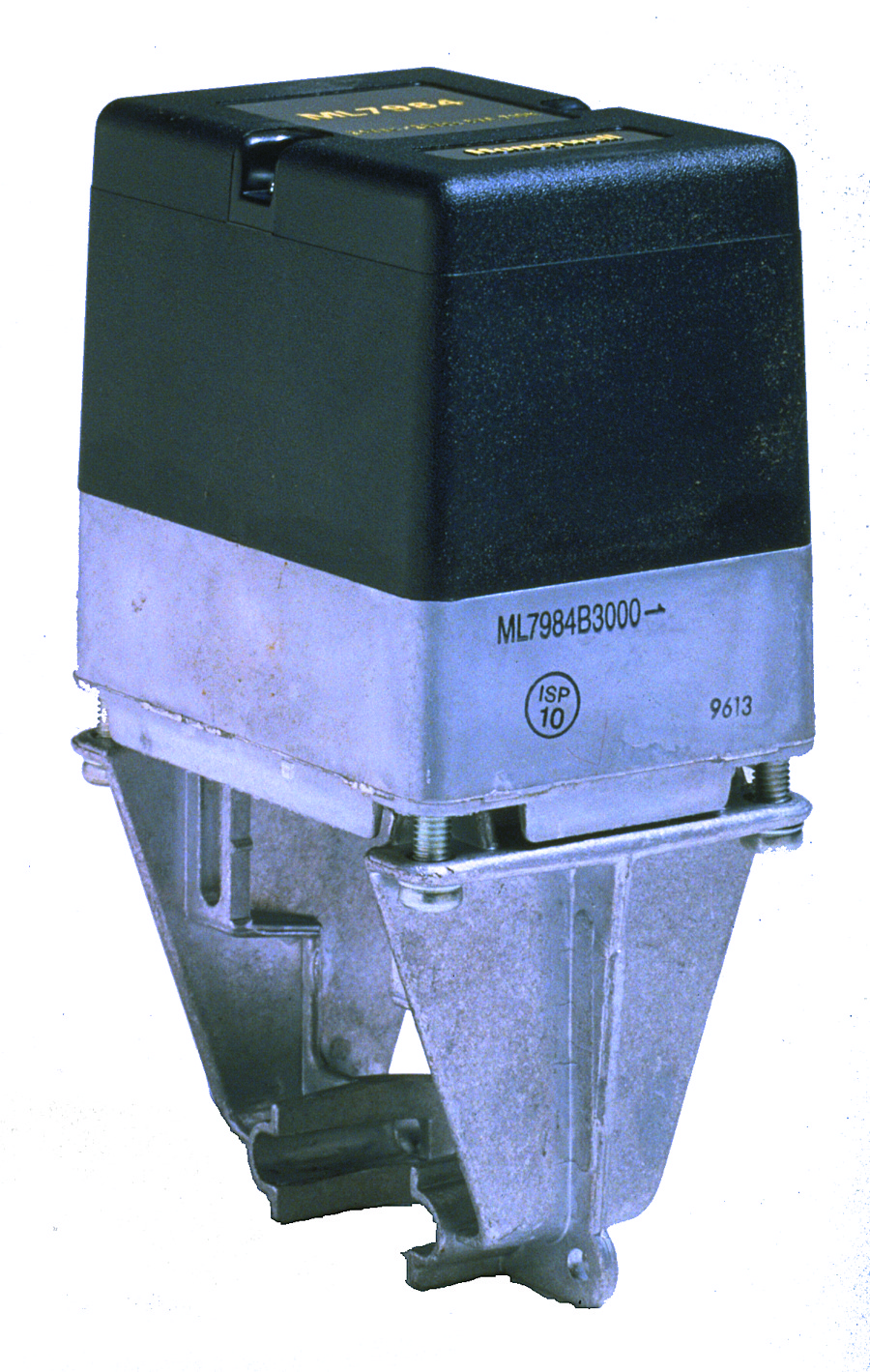

The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two-way and V5013 three-way globe valves, providing linear stem operation between 1/2 in. (13 mm) and 1 in. (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off), or SP3T Series 60 (floating) electro-mechanical and electronic controllers.

FEATURES
• Self-contained, motorized globe valve linkage.
• Microprocessor-based digital position sensing and motor control for accurate positioning.
• Compact size for easy installation in confined spaces.
• NEMA 3R rain-proof cover for outdoor installation.
• Self-calibrating for valve stroke from 1/2 in. (13 mm) to 1 in. (25 mm).
• DIP switch input configuration selection.
• LED (light-emitting diode) status indication.
• Configurable to 3-wire mode for floating models.
• 710 N 160 lbf (712 N) valve closing force.
• Usable with common transformer power supply for multiple actuators and con trollers.
• 24 Vac or 28 Vdc power supply.
• Field-addable position feedback/auxiliary switch mod ule avail able for 5-wire models.
