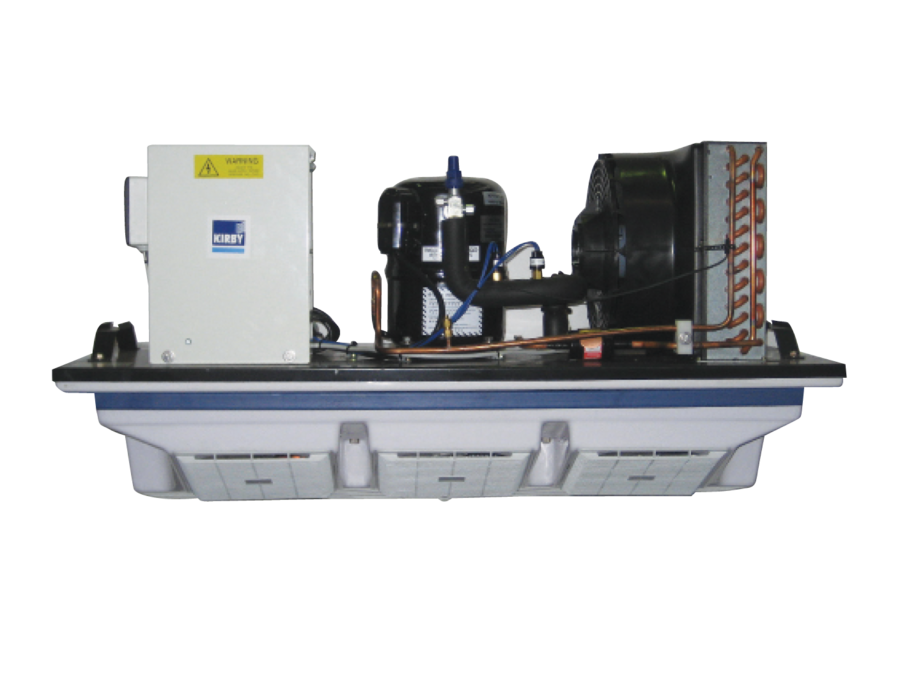

Kirby Low Profile Medium Temperature Drop-In Packaged Refrigeration Unit

KPC1700-6

Product Description

READY TO RUN AND EASY TO INSTALL

The Kirby Drop-In packaged refrigeration unit range will make it easier for you to install and complete your job.  These ‘plug and play’, feature-packed systems are supplied complete – ready to run and easy to install.  It means the hard work is taken out of the job, so you can be on your way, sooner.  Now supplied with a Dixell control installed as standard on all models.

KEY FEATURES

  • Evaporator coil corrosion protection, liquid line dryer, capillary tube refrigerant control, pressure control & Dixell electronic control on all units.
  • Medium Temperature Units feature off cycle defrost only.
  • Low Temperature Units feature electric defrost with temperature switch termination and a pressure safety switch.
  • Fully wired with 3-pin domestic cable plug for all units..
  • All models use CFC-free foam insulation
  • New and improved, slimline electrical box..
  • Encapsulated pressure controls.
  • 3 different temperature probes.
  • Tube support and saddles for the drier to reduce vibration and noise.
  • All low temperature units are fitted with a suction accumulator.
  • All models come with a high efficiency internal float oil separator.

Resources

Kirby Drop-In Packaged Units - Installation Manual

Kirby Drop-In Packaged Units - Installation Manual

1.15 MBPDF
Kirby Drop-In Packaged Refrigeration Units

Kirby Drop-In Packaged Refrigeration Units

3.31 MBPDF

Tech Specification

  • Width 1117mm
  • Depth 507mm
  • Height 577mm
  • Weight 65kg
  • Supply Power 220-240/1
  • Rated Load 6.42amps
  • Max Contin. Current 8amps
  • Locked Rotor Amps 35.9amps
  • Evaporator Fan Qty 3
  • Evaporator Fan Diameter 178mm
  • Evaporator Fan Type AC
  • Condenser Fan Qty 1
  • Condenser Fan Diameter 300mm
  • Condenser Fan Type AC
  • Sound Power 71.6LwA
  • Sound Presure 51.6LpA
