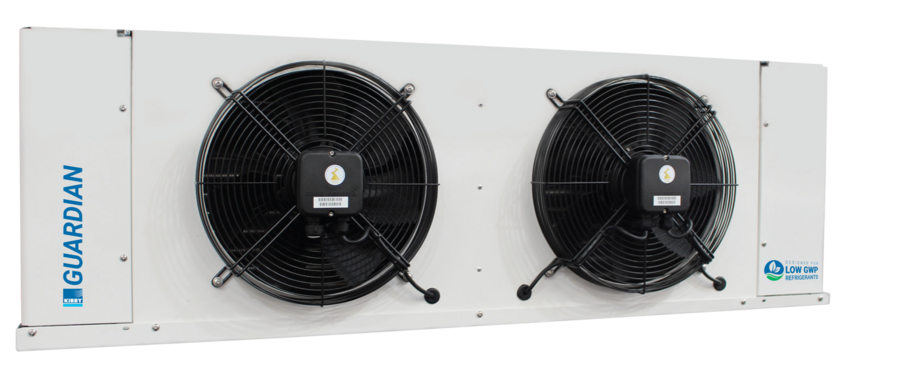

Kirby Guardian Low Temperature Evaporator

KLSHA2028

Product Description

INNOVATIVE FEATURES, REAL BENEFITS

Are you ready to meet the future challenges of refrigeration?  Like never before, increasing energy costs, avoiding food loss and wastage, changes in refrigerant technology and additional requirements for cool room efficiency are making the need for sustainable solutions an urgent priority for all.

The Kirby Guardian range combines innovative features to deliver substantial benefits.

KEY FEATURES

  • Premium aluminium construction with a crisp, white powder coated finish is durable, easy to clean and provides an aesthetically pleasing appearance.
  • User friendly access panels are designed for ease of commissioning and service, with front opening access to both electrical and refrigeration components.
  • Ziehl-Abegg FE2owlet fans feature bionic blade technology to deliver larger air volumes, optimal flow properties and improved noise ratings, whilst offering maintenance free use.
  • Fully reversible drain pan provides flexibility when selecting installation locations while making maintenance quick and easy.
  • Future proofed and specifically designed for next-generation, low GWP refrigerants, including R450A, R448A, R449A and R507A.
  • Advanced Series 9 coil design produces additional capacity, more stable room conditions, slower frost build up and more efficient air defrost; resulting in greater efficiencies and lower cost of ownership.

Resources

Kirby Guardian - Product Brochure

Kirby Guardian - Product Brochure

2.23 MBPDF
Kirby Guardian - Installation Manual

Kirby Guardian - Installation Manual

1.03 MBPDF

Spare Parts

  • Defrost Term/Fan Delay 3 Wire
  • Kirby Drain Element Heater
  • Kirby Coil Element Heater
  • Zeihl-Abegg FN030-4EK.0C.V7P6
  • 2 Wire Heater Safety T/Stat
  • Drain Spout Assembly - Kirby

Tech Specification

  • Width 1155mm
  • Depth 470mm
  • Height 494mm
  • Weight 27kg
  • Suction Connection 22.22
  • Liquid Connection 12.7
  • Supply Power 220-240/1
  • Input Power 170W
  • Rated Load 0.84amps
  • Max Contin. Current 0.84amps
  • Defrost Input Power 2000W
  • Evaporator Fan Qty 2
  • Evaporator Fan Diameter 300mm
  • Evaporator Fan Type AC
  • Sound Power 72.0LwA
  • Nominal Capacity @ 6K* 2900
