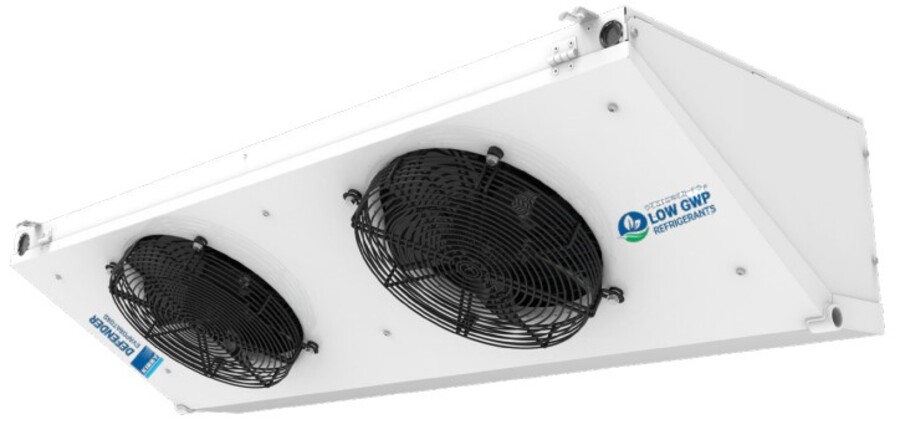

Kirby Defender Ecocool CO2 Med Temp Evaporator - 2x300

KDMSCA2020

Product Description

KIRBY DEFENDER ECO-COOL

All models within the Kirby Defender™ Ecocool range are rated for a maximum working pressure up to 80 Bar, making them suitable for both transcritical and subcritical applications. With a very low global warming potential (GWP) base value of 1, R744 is an environmentally friendly alternative to synthetic refrigerants. Naturally occurring, it is non-toxic (within a ventilated space), non-flammable and non-ozone depleting. Furthermore, not only does it provide exceptional performance, your investment is future proof for years to come.

Features:

  • The unique low-profile design provides additional space within cool rooms to maximise the useable space for product.
  • User friendly access panels are designed for ease of commissioning and service, with easily accessible opening access to both electrical and refrigeration components.
  • Premium aluminium construction with a crisp, white powder coated finish is durable, easy to clean and provides an aesthetically pleasing appearance.
  • Pre-wired fans simplifies installation and speeds up commissioning.
  • EBM fans feature advanced blade technology to optimise air volumes and flow properties, and improved noise ratings, whilst offering maintenance free use.
  • Fully reversible drain pan provides flexibility when selecting installation locations while making maintenance quick and easy.

Tech Specification

  • Width 1374mm
  • Depth 600mm
  • Height 284mm
  • Weight 30kg
  • Suction Connection 12.7
  • Liquid Connection 9.5
  • Supply Power 220-240/1
  • Input Power 144W
  • Rated Load 0.64amps
  • Evaporator Fan Qty 2
  • Evaporator Fan Diameter 300mm
  • Evaporator Fan Type AC
  • Sound Power 71.0LwA
  • Evaporator Pressure Rating 80Bar
