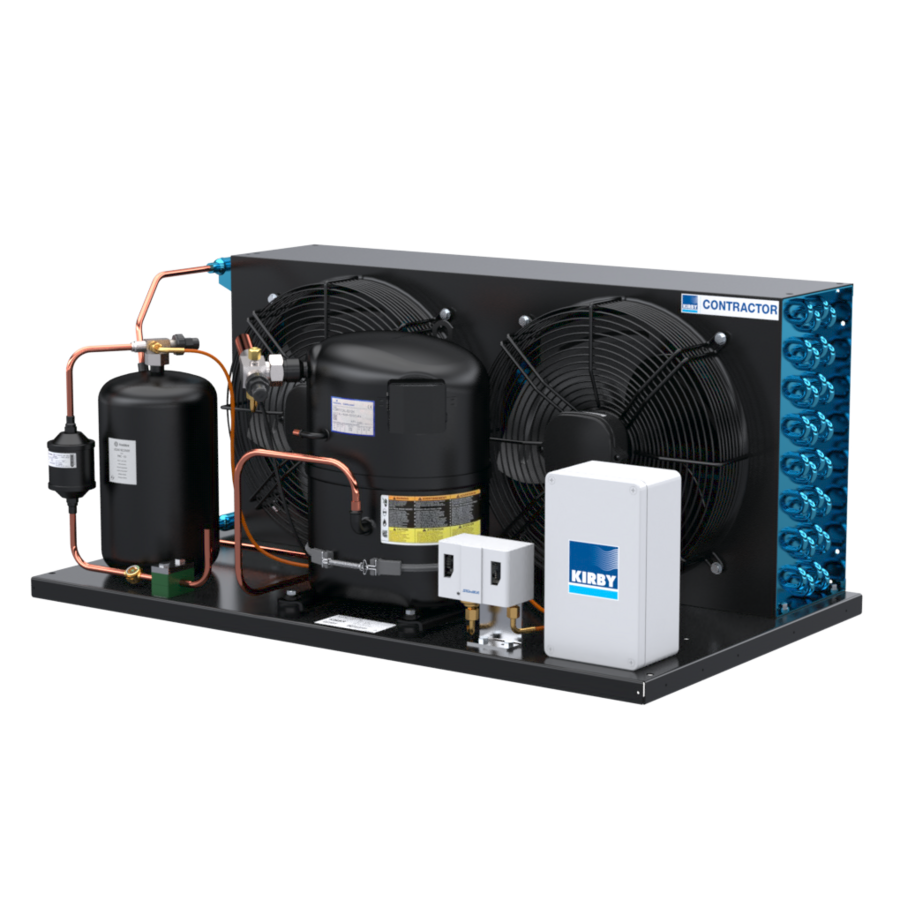

Kirby Contractor KCM440GT Med Temp R404a

KCM440GT

Product Description

Developed for harsh Australian conditions, the Kirby Contractor Hi-Ambient condensing units are rated for operation up to 43°C ambient.

With improved performance due to the inclusion of large condensers, the Kirby Contractor range delivers high output with high efficiency. And because they’re from Kirby, they’re robust and reliable - guaranteed

Features & Benefits

The Kirby Contractor Condensing Units offer proven design attributes to be installation ready:

  • Incorporating either an Embraco or Copeland compressor to deliver reliability and proven performance
  • High ambient condenser optimises efficiency and airflow for continuous operation at up to 43 °C ambient temperatures
  • Lower noise and vibration levels through clever compressor design
  • Select units avaliable in single phase or three phase
  • All condenser coils supplied with “Blue Coat” fin and coil protective coating
  • Contractor Series units include liquid line drier, sight glass and HP/LP control
  • Compact footprint for ease of installation
  • Durable painted galvanised bases maximise service life
  • Premium quality inclusions and controls

Spare Parts

  • Sight Glass 3/8" Solder
  • Dual Pressure Control Saginomya Automatic Reset
  • Freddox DSC083S Liquid Line Drier 3/8" ODF
  • Copeland Compressor KCM514CAL-E512H 3ph
  • Rotalock Valve 5/8 Sol - 1-1/4" R/Lock
  • Freddox Liquid Receiver 4.0L 3/8"

Tech Specification

  • Width 860mm
  • Depth 550mm
  • Height 400mm
  • Weight 77kg
  • Suction Connection 15.88
  • Liquid Connection 9.52
  • Supply Power 380-420/3
  • Input Power 2100W
  • Rated Load 3.8amps
  • Max Contin. Current 6.1amps
  • Locked Rotor Amps 28amps
  • Condenser Fan Qty 2
  • Condenser Fan Diameter 300mm
  • Condenser Fan Type AC
  • Sound Power 77.2LwA
  • Sound Presure 57.2LpA
