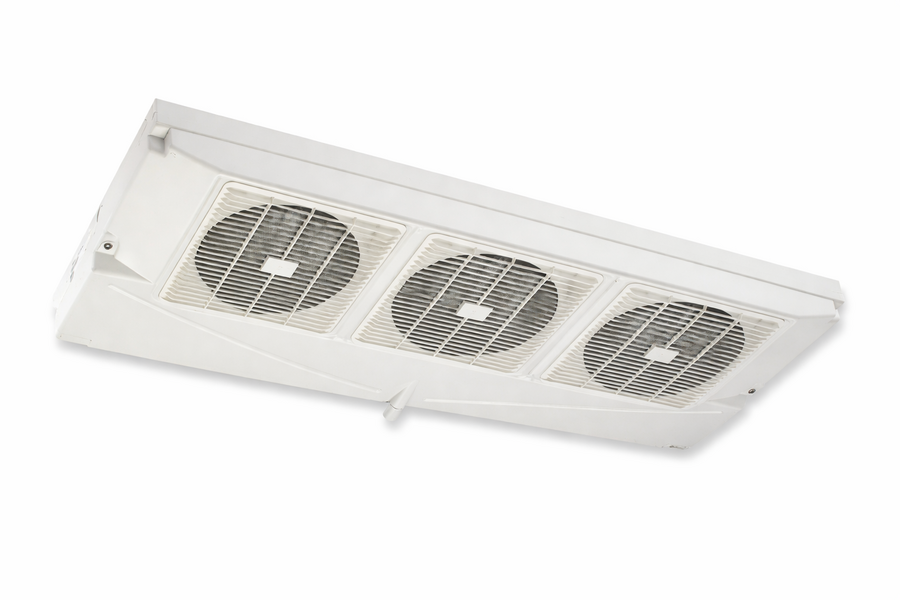

Kirby Cabinet Cooler Medium Temperature Evaporator

KC1001

Product Description

COMPACT DESIGN FOR MAXIMUM STORAGE SPACE

With a smart and aesthetically pleasing design, Kirby Cabinet Coolers deliver the perfect combination of additional storage space and greater refrigerated storage capability.  In-built controls terminate the defrost cycle when required temperatures are reached, and low temperature models have the ability to achieve storage temperature capacity down to -32°C.

KEY FEATURES

  • Compact, low profile design which gives more shelf space.
  • Slim, neat profile for maximum cabinet storage space.
  • Removable, discreet drain tray which is easily removed for cleaning and service.
  • Storage temperature capacity down to -32°C.
  • In-built controls terminate the defrost cycle when required temperatures are reached.

Resources

Kirby Cabinet Cooler Evaporators: Product Brochure

Kirby Cabinet Cooler Evaporators: Product Brochure

2.58 MBPDF
Kirby Cabinet Cooler - Installation Manual

Kirby Cabinet Cooler - Installation Manual

691.21 KBPDF

Spare Parts

  • Motor Fan 240V 50HZ CCW
  • Housing Assy(3Hole)With Drain
  • Fan Guard Plastic Suits Kirby Cabinet Coolers
  • Fan Blade 7" Dia 3/16 bore

Tech Specification

  • Width 796mm
  • Depth 410mm
  • Height 130mm
  • Weight 7.9kg
  • Suction Connection 9.52
  • Liquid Connection 9.52
  • Supply Power 220-240/1
  • Input Power 81W
  • Rated Load 0.72amps
  • Evaporator Fan Qty 3
  • Evaporator Fan Diameter 178mm
  • Evaporator Fan Type AC
  • Nominal Capacity @ 6K* 1180
