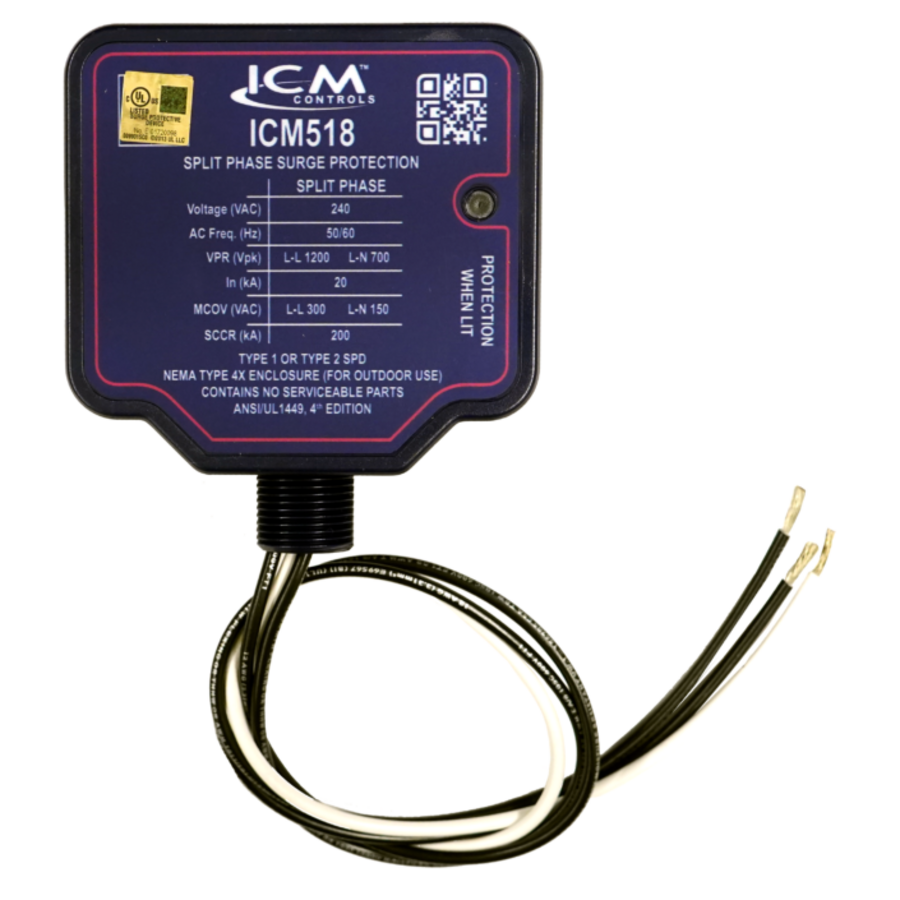

Split Phase Surge Protective Device

The ICM518 is a UL Listed Whole-Home Surge Protective Device for 240 VAC Split-Phase configurations designed to protect a dwellings most valuable assets. It can be installed as a Type 1 (whole-home) or a Type 2 Surge Protective Device. Type 1 applications include installations before a service entrance or utility meter. Type 2 applications include installations after service entrances protecting particular equipment. The ICM518 has a NEMA Type 4X waterproof rated enclosure that is suitable for both indoor and outdoor use.

240 VAC SPLIT PHASE SURGE PROTECTIVE DEVICE

• Type 1 or Type 2 Whole Home SPD
• Easy 3-wire installation
• 3/4” conduit connection
• Maximum Surge Current: 100 kA
• Green LED indicator tells whether the device is operational
• Low cost, high performance
• Rugged and reliable
• UL Listed
• NEMA Type 4X watertight enclosure for indoor/outdoor use
• Surge protection technology: Thermally protected MOVs (TFMOV)
