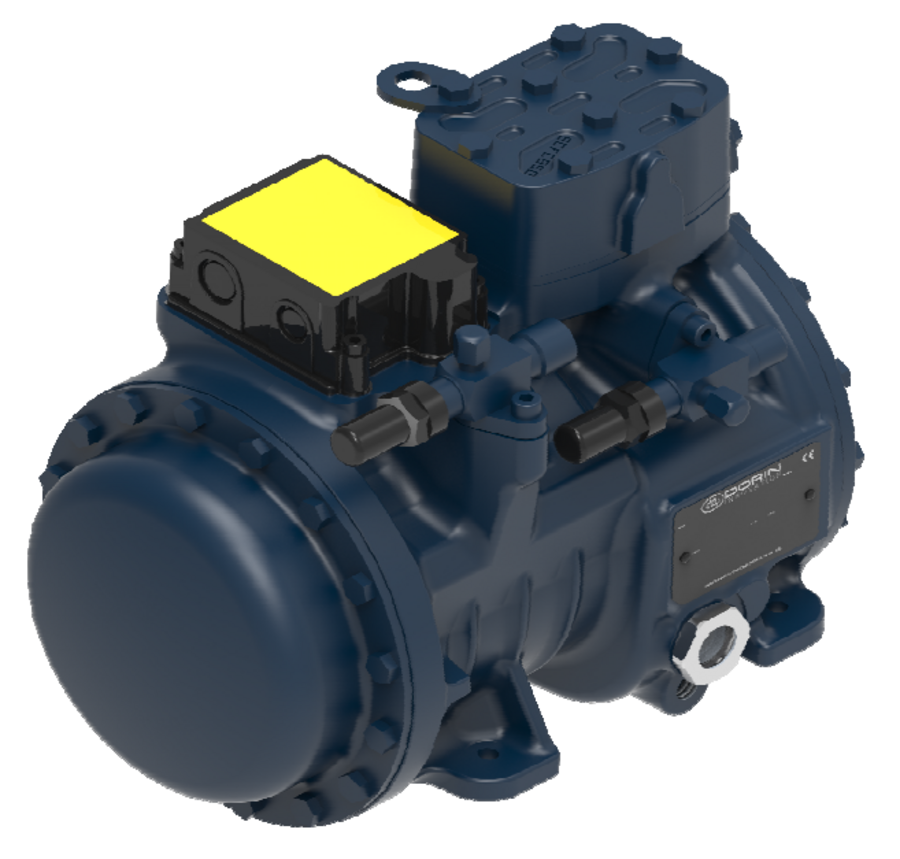

Dorin Semi-Hermetic Compressor H11 Series 415V

H281CC/HTCR

Product Description

COMMERCIAL REFRIGERATION

Systems designed with compressors in series or in parallel to address the need for refrigeration and air conditioning systems in shopping malls, supermarkets, hypermarkets, and logistics centres.

Dorin offers a complete and diversified range of compressors for refrigeration and air conditioning systems that will meet the needs of the market: more than 600 models of open type and semi-hermetic compressors, designed and built to be used with HCFCs or HFCs, but also with

natural refrigerants such as hydrocarbons (HC), especially carbon dioxide (CO2). The product range is completed by two-stage compressors and a wide range of accessories.
Efficiency, reliability and robustness are the main features of our products with the utmost.

Attention to the quality of suppliers, individual components, and production cycle.

Displacement:

11.64 m³/hr

R404a Capacity:

7010w @ -5°c SST

2818w @ -25°c SST

R134a Capacity:

4240w @ -5°c SST

Resources

Dorin Catalogue

Dorin Catalogue

3.59 MBPDF
Dorin Operating Instructions Semi-Hermetic

Dorin Operating Instructions Semi-Hermetic

3.96 MBPDF
H11 Exploded View - Spare Parts

H11 Exploded View - Spare Parts

1.53 MBPDF
Approved Oils for Dorin Compressors

Approved Oils for Dorin Compressors

144.50 KBPDF
Dorin H Semi Herm Wiring Diagram

Dorin H Semi Herm Wiring Diagram

874.72 KBPDF
Dorin Semi Hermetic Instructions

Dorin Semi Hermetic Instructions

8.01 MBPDF
H100CC Spare Parts Info

H100CC Spare Parts Info

1.40 MBPDF
Dorin Co2 Compressor Range

Dorin Co2 Compressor Range

13.20 MBPDF
Dorin Innovation Semi Hermetic Compressors

Dorin Innovation Semi Hermetic Compressors

2.29 MBPDF
1LTZ010 SEH409

1LTZ010 SEH409

2.22 MBPDF
