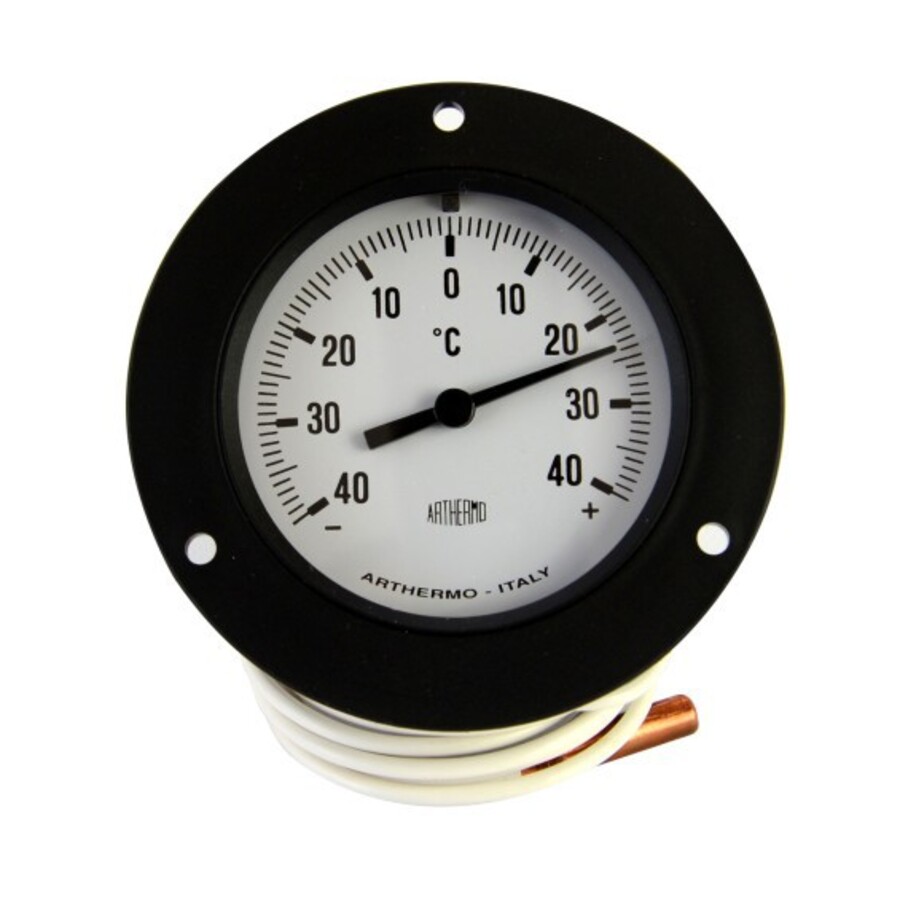

Thermometer with liquid expansion probe which can be surface-mounted or built-in. Casing in special resin, transparent glass. Especially suitable for cold-storage rooms and cold environments.
It has a reversible flange, black resin body, capillary mm.1500 Ø3,5 mm PVC coated, temperature range -40+40°C white dial with black numbers and Arthermo logo, free bulb Ø7,5 mm.
Optional:
- Different length capillary
- Compensation of environmental temperature to the reading casing
- Different size of bulb
- Different colour of displays and/or number
- Nipple
- Different temperature scale
- Max temperature tolerance casing 40°C
- Case dimension: Ø60, Ø80, Ø100 mm
- Brass or copper bulb: Ø7.5 mm
- Copper capillary coated in PVC
- Casing in material loaded black resin
- Frame loaded black resin
- Fastener with screws
- Temperature range -40÷40°C
- Dial white with black numbers
