Torin Fan Blades

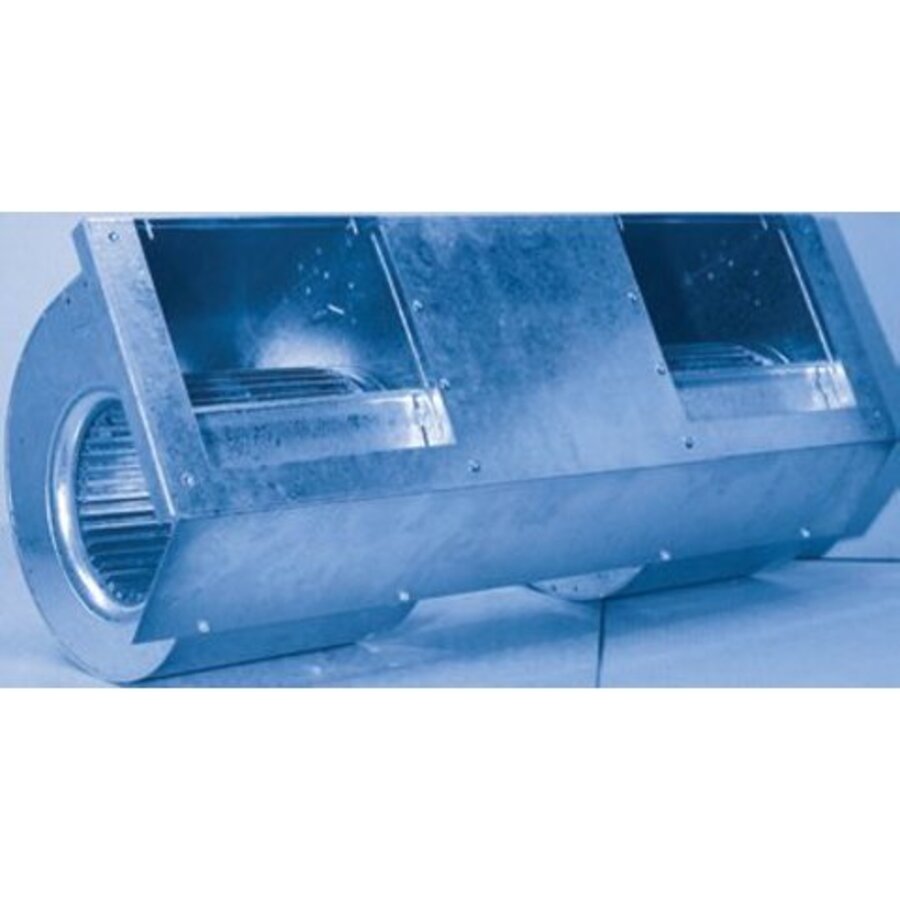

This type of blower unit is direct drive with forward curved wheels mounted directly to the motor shaft. The blower deck has twin housings located on each side of the motor. The preferred product range has these housings and the motor mounted to a base tray.

DXG product styles use the ’G’ type wheels. These are a plastic wheel available in the 82mm or larger 203 mm, 241 mm and 270 mm diameter. A range of motors are available to cover airflows up to 2200l/s.

The larger direct drive fan decks are equipped with 4 pole, 3 speed motors. Where applicable an appropriate size capacitor is fitted to give the desired performance. AII motors have thermal overload protection and insulation that conforms to class B requirements.
