Aluminium, Modular, Quick to Install, fully Adjustable & Compliant HVAC Mount supports up to 500kg!

Our Condenser Mounts come as a boxed kit-set, including the specialised Monkeytoe mounting clips and fixings to ensure loads are taken down to the roof structure and not applied to the roof itself.

Suitable for a variety of condenser, air conditioner, air handler and mechanical units, this product is a fully engineered solution that can be mounted on most roof types.

Product Benefits:

• Up to 500kg
• 1200 & 2400mm purlin spacings
• Anti-vibration mounts included

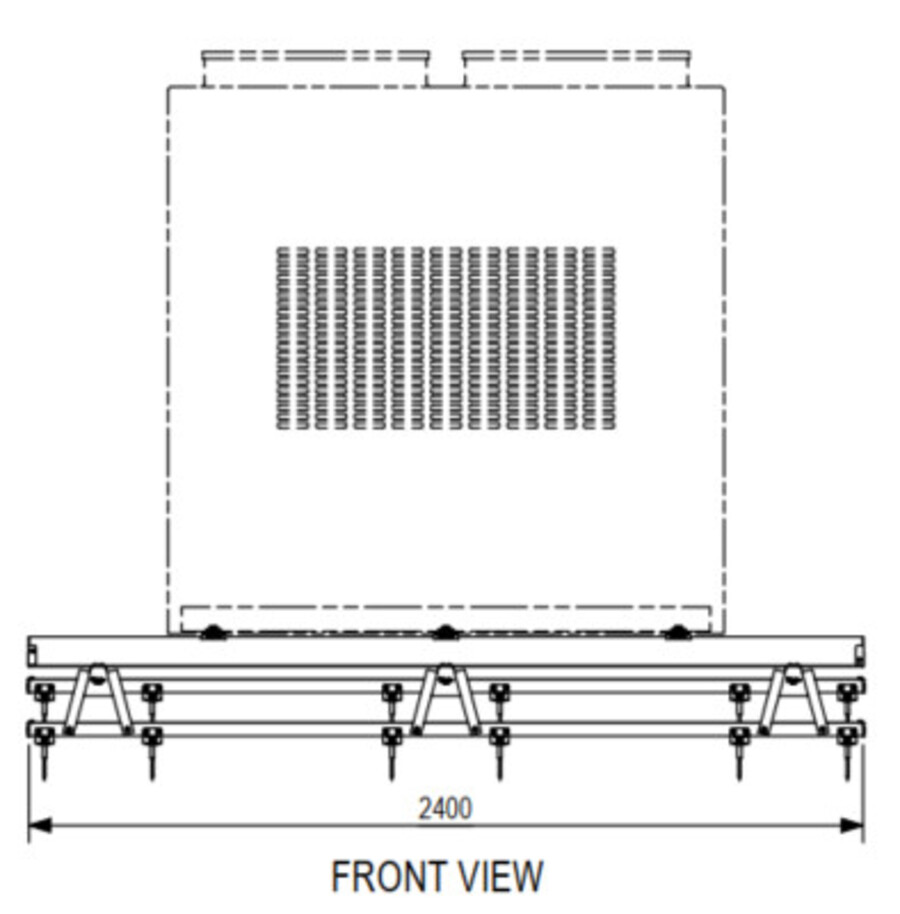

• Provides an adjustable mounting area of 2400mm x 2400mm with a load rating of 500kg
• Fully engineered to AS/NZ 1170.0, 1170.1 and 1170.2 (wind loads) and 1170.5 (seismic loads)
• Suitable for wind regions NZ 1-4
• Suitable for any roof profile up to 60mm in depth

Unable to achieve wind region C requirements - Use CM05C
