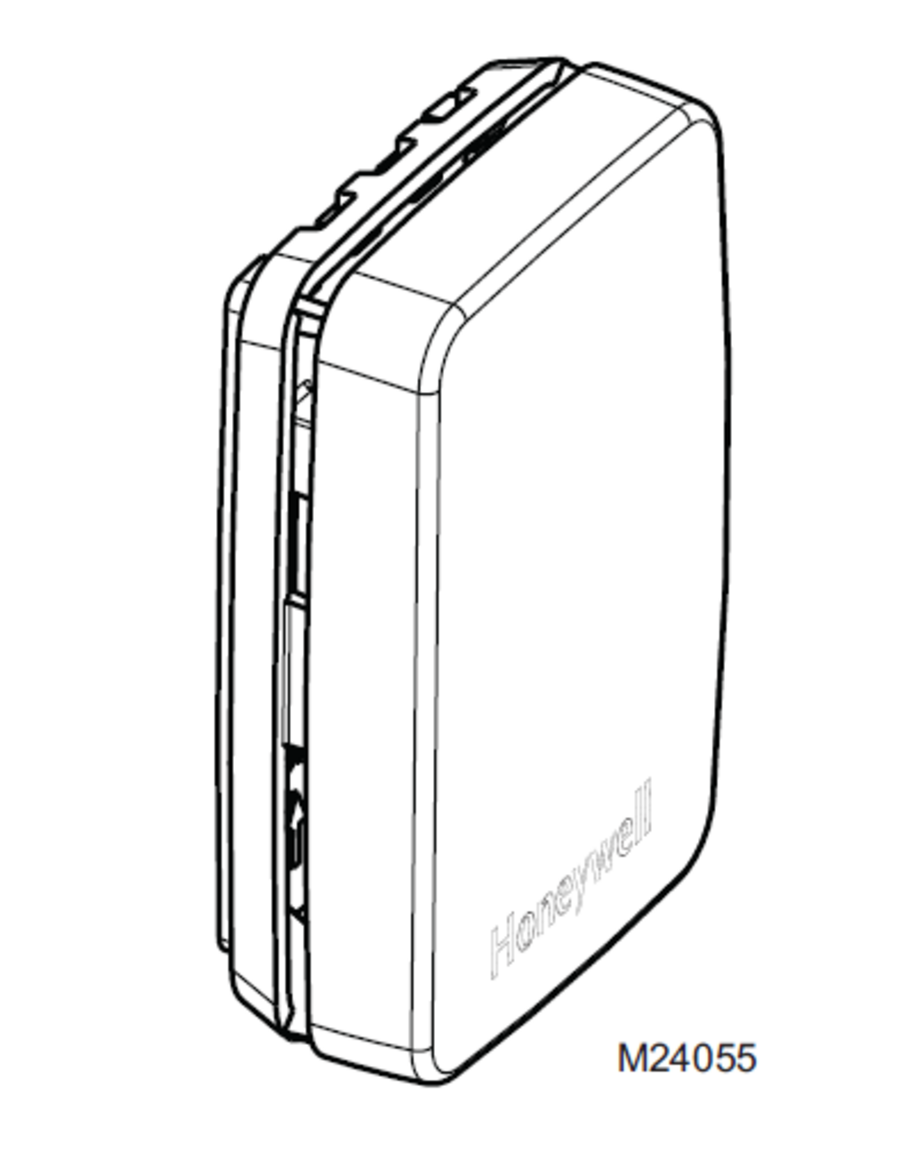

This indoor sensor is designed to sense temperature at a remote location and send this information to the VisionPRO Thermostat. This sensor can be used as a stand alone sensor or as part of an averaging network. Once a remote indoor temperature sensor is connected to the thermostat, the thermostat’s sensor is no longer used. The thermostat’s installer setup should be modified to tell the thermostat that remote indoor temperature sensor(s) have been used. The Inside temperature reading on the thermostat’s display will be the remote sensor(s) temperature location(s).

Operating Ambient Temperature Range:45 to 88°F (7.2 to 32°C).

Display Range: 0 to 99°F (-18 to 37°C).

Sensor Accuracy: +/-1.5°F at 70°F (+/-.84 at 21°C)

Operating Relative Humidity: 5% to 95% non-condensing.

Finish: White.

Resistance Characteristics: Negative temperature coefficient (NTC). Resistance decreases as the temperature increases.

Dimensions in inches (mm): 1 1/2 (38) wide x 2 1/4 (57) high x 3/4 (19) deep.

Distance: Maximum distance between thermostat and sensor is 200 feet.
