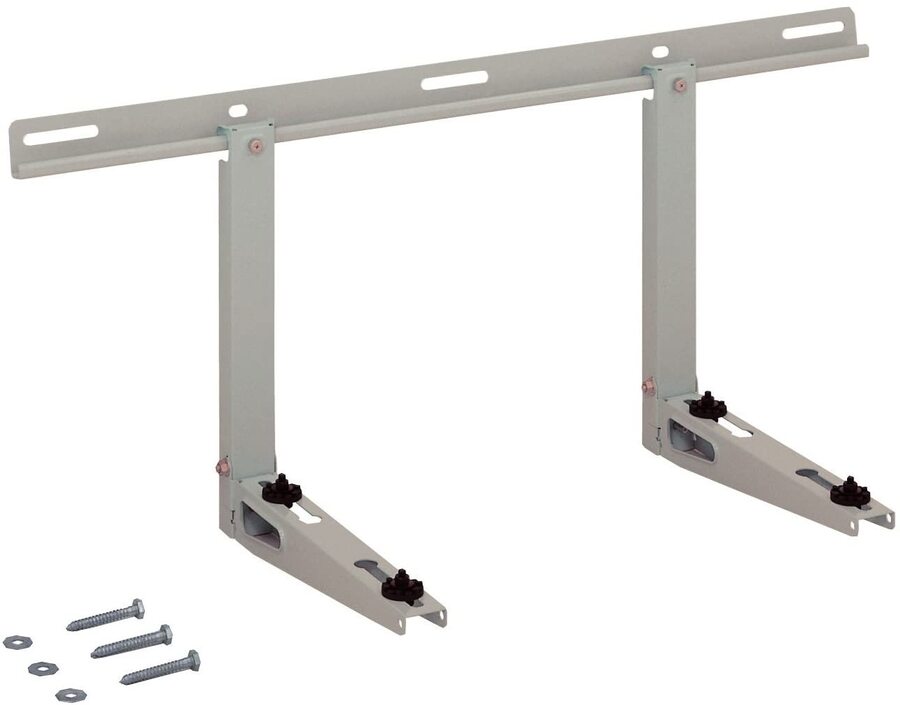

Inaba Denko C-KZG-L Wall Condenser Bracket Hot Dip Galvanized L Type

• Easy assembly with one-touch inserting arm from the front
• Speedy installation using and head screw
• Suitable for a sea air wind or snowy area
• Very strong at corrosion due to hot dip galvanized surface min 350g/m2
• Max Loading: 80 kg
• Material: Hot dipt galvanized
• A/C Dimension / Width: 70mm x 940mm
• A/C Dimension / Depth: 160mm x 400mm

Attachments:

• Hot dip galvanized bolt for anti-corrosion
• Coach bolt
• Insulated washer
• Dimention scale on component for easy installation

Caution: Reinforcement work required at a windy place.
