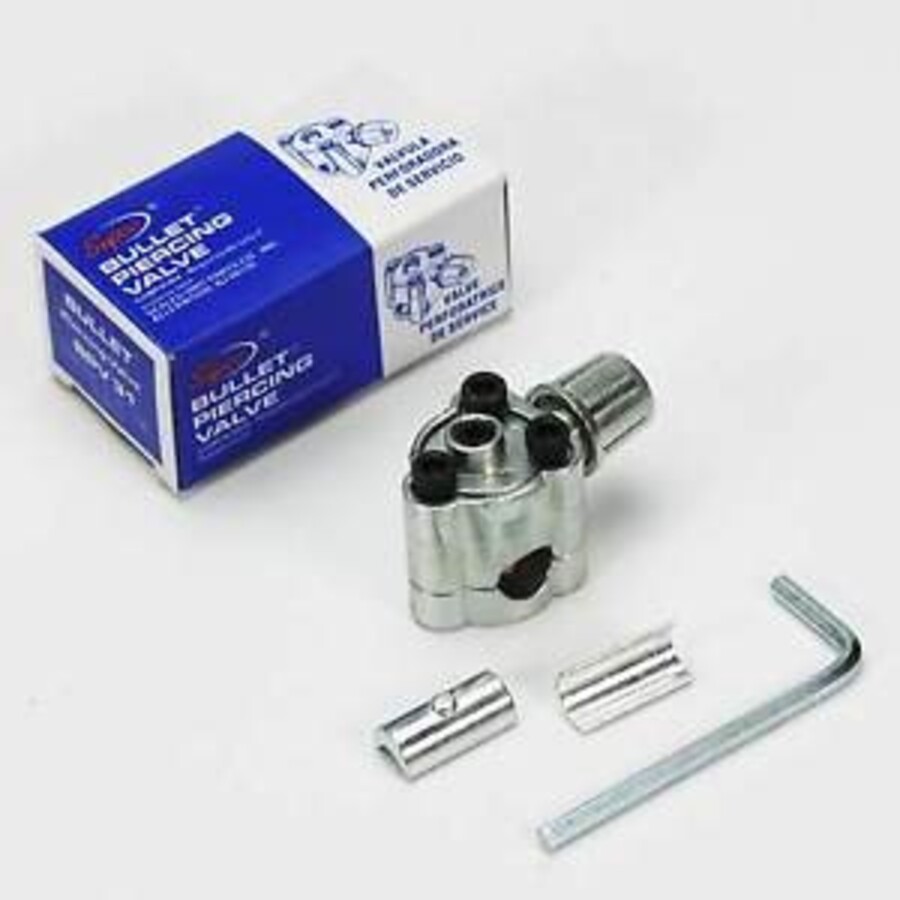

Supco Bullet Piercing Valve 1/4", 5/16", 3/8"

Description:

• The ONLY valve with a permanent type, patented gasket to provide 50 times more sealing area than standard O-ring type valves.
• Connection: ¼" Male Flare (0.25")
• OD Size: ¼", 5/16", and â…œ"
• Max PSI: 500PSI

Features/Benefits:

• Safe for use on the LOW SIDE of R410 systems
• A sealing force of over 180-inch lbs., torque tested with 450 lbs. pressure tested at 250°F
• Corrosion resistant
• Piercing needle is engineered for concentricity and hardness to ensure perfect seating every time
• 500 PSI Maximum pressure
• Non-positional mounting, no adapter valve required
• Requires only 2" clearance for installation and operation
• Hex key wrench included

Applications:

• Install on round suction lines or uneven tubing
• Install on the high side as a permanent valve on site
