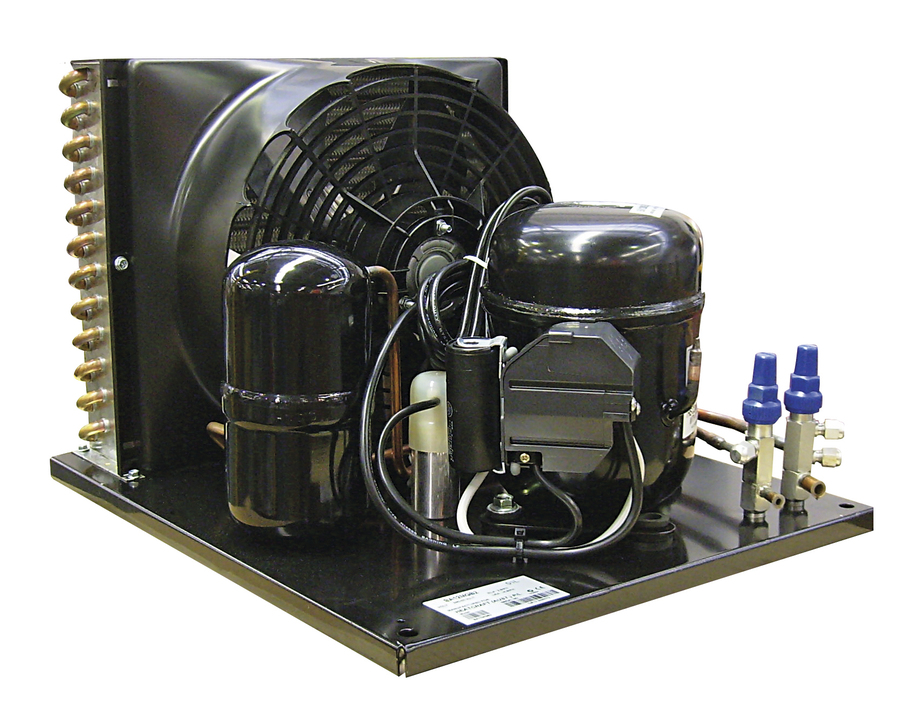

Kirby Nullarbor Condensing Unit

BA9MGB1

Product Description

BUILT TOUGH AND RELIABLE FOR AUSTRALIA'S HARSH CONDITIONS

Developed for harsh Australian conditions, our Nullarbor Hi-Ambient condensing units are rated for operation up to 45°C ambient.

With improved performance due to the inclusion of large condensers, the Kirby® Nullarbor range delivers high output and efficiency.  And because they’re from Kirby®, they’re robust and reliable – guaranteed.

KEY FEATURES

  • Incorporating the latest Kirby® BA, WJ and AW series compressors delivers reliability and proven performance.
  • High ambient condenser optimises efficiency and airflow for continuous operation at temperatures up to 45°C ambient temperatures.
  • Durable painted galvanised bases maximise service life.
  • Lower noise and vibration levels through clever compressor design.
  • Compact footprint for ease of installation.
  • Premium quality inclusions and controls.

-----------------------------------------------------------------

Nominal horsepower: 1/3 HP

Application: MBP

Voltage: 1 pH (single) 240V

Nominal Capacity: 760W@-5°C (35°C Amb) R404a

Spare Parts

  • Kirby 250mm Fan Guard
  • 230mm Fan Blade to suit Kulthorn Fan Motors
  • Fan Motor 10w Double Shaft 'D'
  • Kirby Commercial Hermetic Reciprocating Compressor

Tech Specification

  • Width 330mm
  • Depth 470mm
  • Height 276mm
  • Weight 21kg
  • Suction Connection 3/8 F.V.
  • Liquid Connection 1/4 F.V.
  • Supply Power 220-240/1
  • Input Power 560W
  • Rated Load 3.2amps
  • Condenser Fan Qty 1
  • Condenser Fan Diameter 230mm
  • Condenser Fan Type AC
  • Sound Power 58.5LwA
  • Sound Presure 38.5LpA
