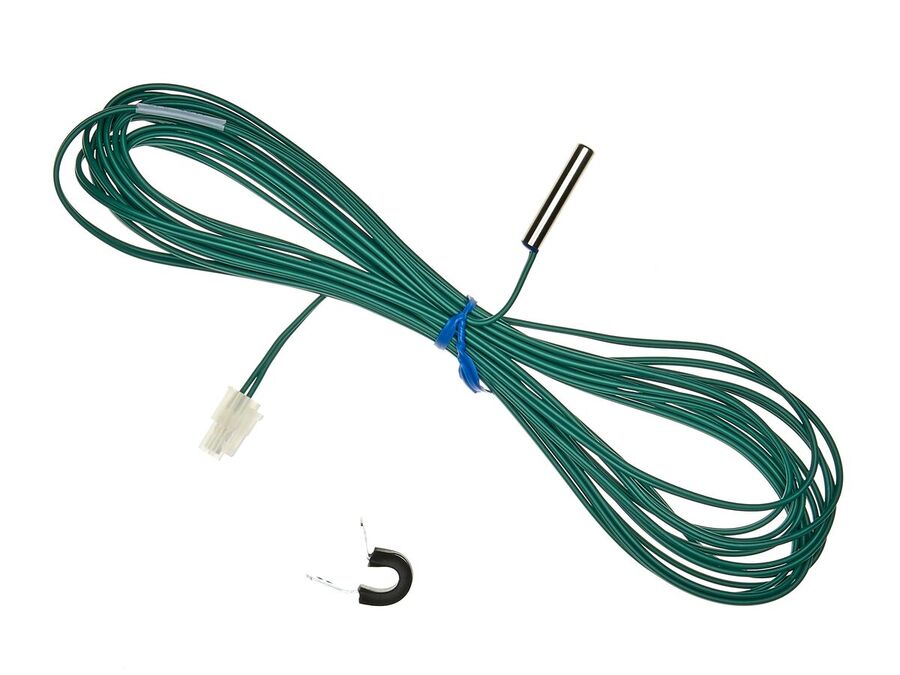

General Purpose Temperature Sensor

501-1129

Product Description

  • The 501-1129 is CPC’s general purpose temperature sensor.
  • It is suited for a wide variety of applications.
  • The temperature sensor has a 10K Ω thermistor.
  • The thermistor is enclosed in a nickel-plated brass shell with epoxy.
  • The sensor has a green 20’ pigtail.
  • The wire is a 22 AWG CL3X cord with 2 conductors.
  • The cable is UL rated for 194°F (90°C).
  • The sensor has been tested by CPC to maintain less than 0.72°F error between -40 and 248°F.
