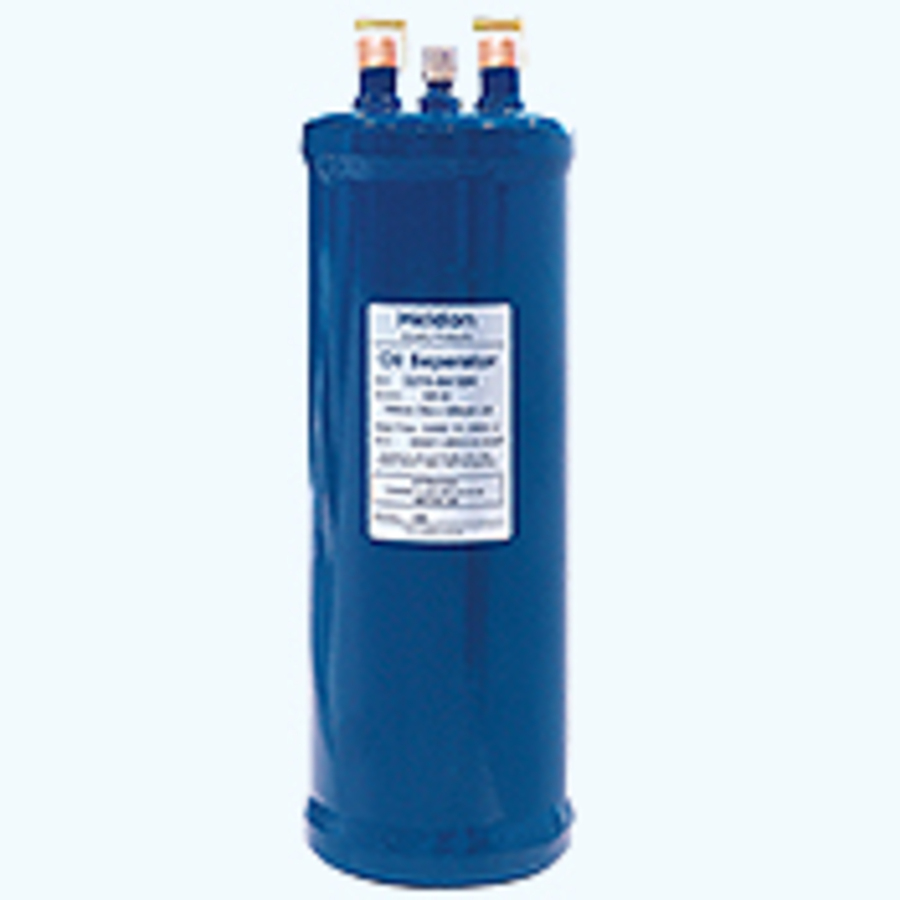

Henry Oil Separator 3/8ID

3210-6406

Product Description

Heldon Oil Separators are designed for maximum flow with minimal pressure drop while efficiently removing oil from  suspension in the refrigerant. Oil removal is achieved using stainless steel membranes that have been optimised for both flow and oil removal. A baffle plate allows separated oil to de-aerate while remaining warm and viscous. A stainless steel float and precision needle and seat are used to achieve automatic oil return to the compressor crankcase. Heldon Oil separators are constructed from steel with solid copper connections.

Features:

  • Designed for maximum flow and minimal pressure drop
  • Solid copper connectors
  • Optimised separation membrane per mass flow
  • Precision needle and seat, allows only the correct amount of oil to return to the crankcase
  • Internal baffle plate
  • Hermetically sealed stainless steel float
  • Powder coated finish
