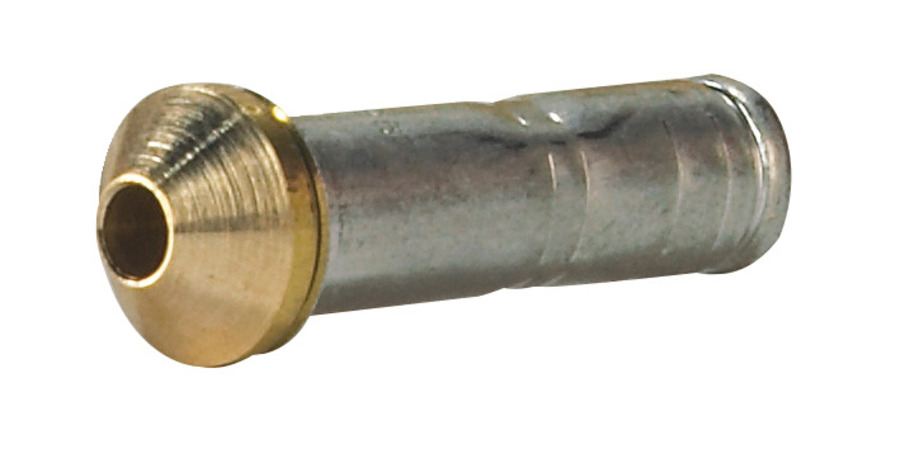

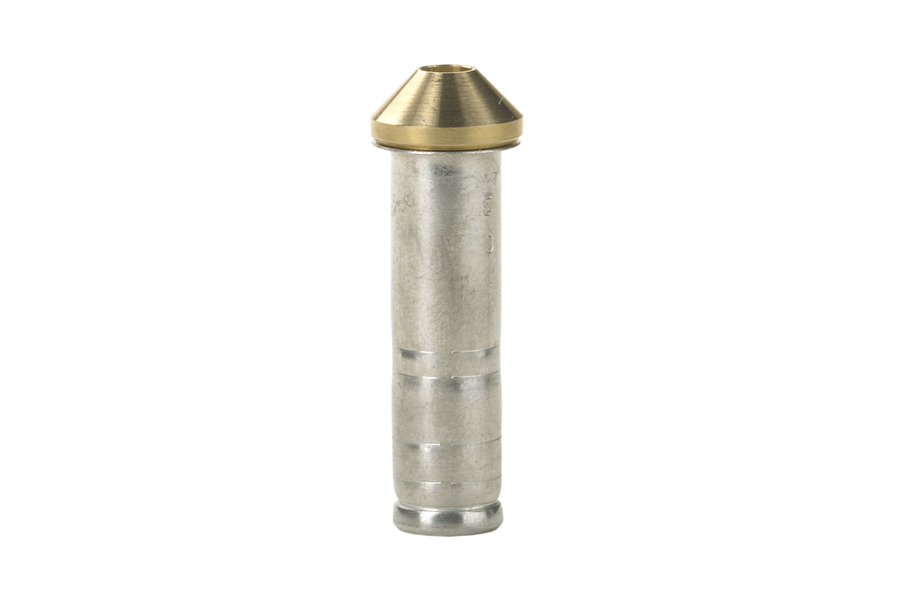

Danfoss Orifice TE2 - 06

068-2009

Product Description

T2 / TE2 orifice for expansion valve, strainer and label

Orifice assemblies with filters, designed for use with either solder adapter product configurations or standard product configurations.

  • Thermostatic expansion valves regulate the injection of liquid refrigerant into evaporators.
  • Injection is controlled by the refrigerant superheat.
  • Valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.​
  • Danfoss Orifice Assemblies with filters

The rated capacity is based on:

  • Evaporating temperature te = +5°C for range N (–40 - 10°C)
  • Evaporating temperature te = –30°C for range B (–60 - –20°C)
  • Condensing temperature tc = +32°C
  • Refrigerant temperature ahead of valve tl = +28°C
  • Dirt protection filter
  • Easy stocking
  • Easy capacity matching
  • Better Service

Resources

Injection valve, type TXI 2

Injection valve, type TXI 2

0 bytesPDF
Thermostatic expansion valve, type T 2 and TE 2

Thermostatic expansion valve, type T 2 and TE 2

0 bytesPDF

Spare Parts

  • Spare part, T2; TE2, Filter
