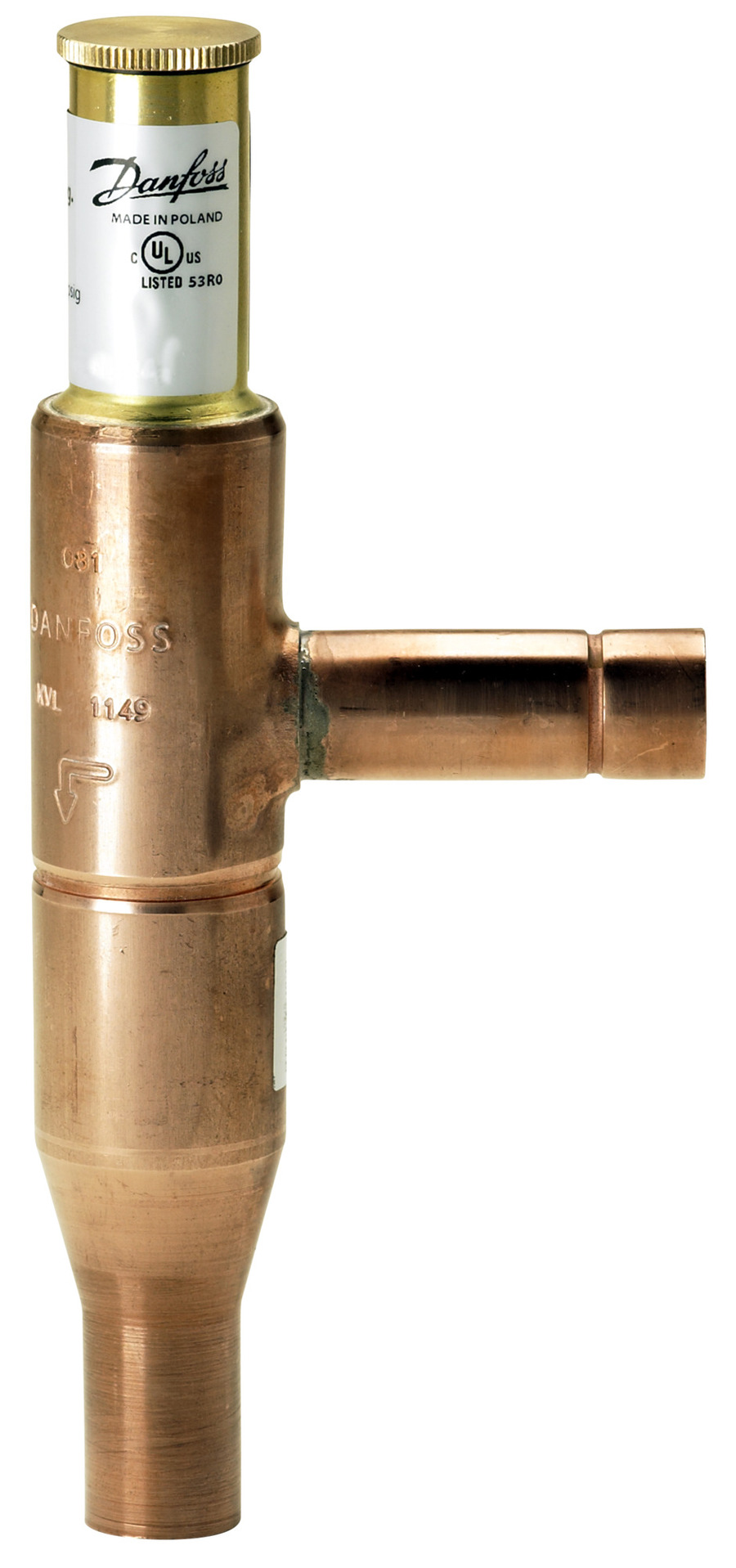

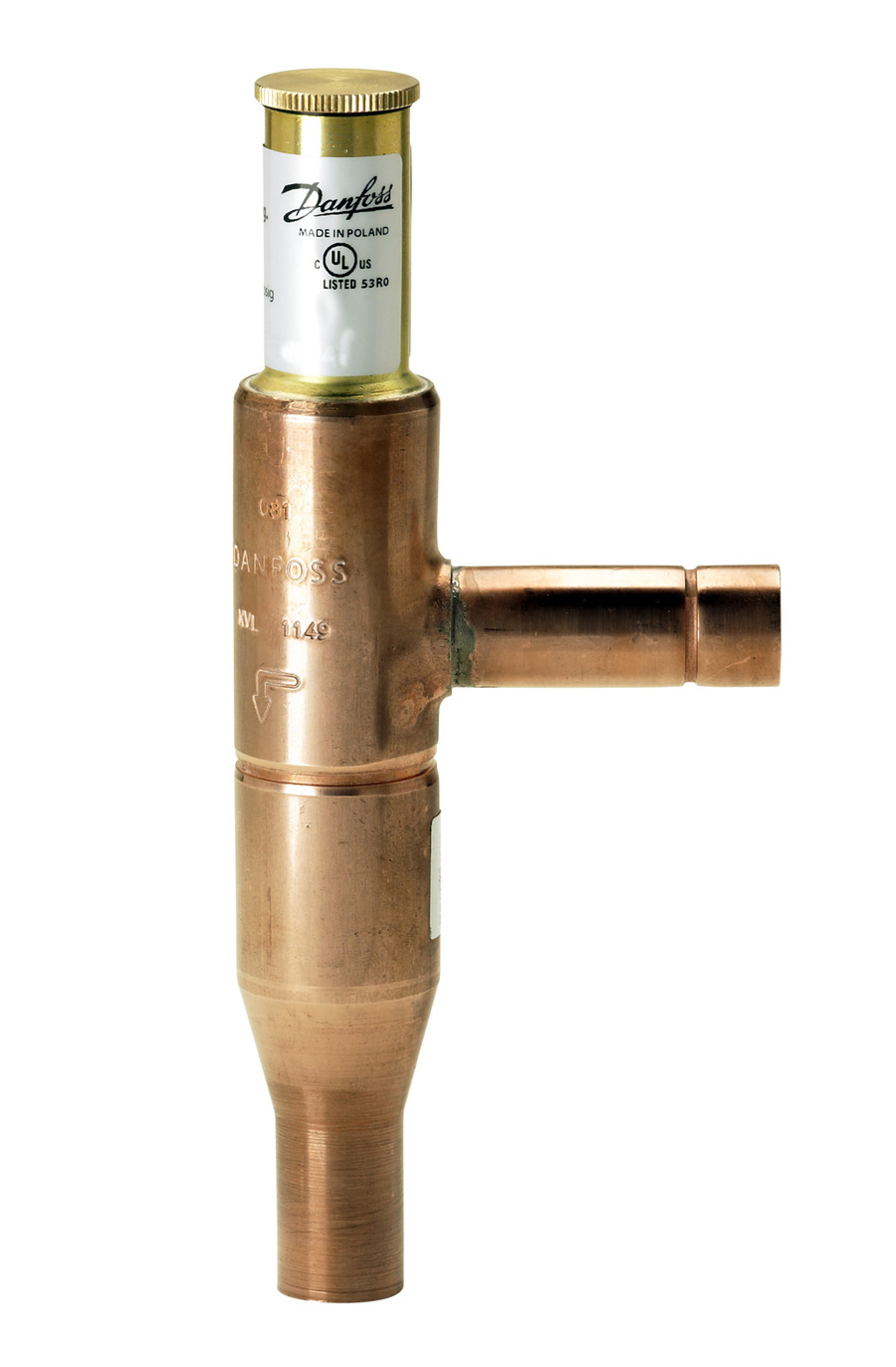

Danfoss Pressure Regulating Valve CPR 1-1/8 Solder

Regulating range 0.2 - 6.0 bar, factory setting 2 bar, max. working pressure 18 bar.
Access port: ¼ in. Schraeder valve for pressure testing.
Max. test pressure:  KVL 12 -22 = 28 bar, KVL 28 - 35 = 25.6 bar
Maximum P-band:  KVL 12 - 22 = 2.0 bar, KVL 28 - 35 = 1.5 bar
Rated capacities: see technical literature

Characteristics:

• Type:  KVL 15
• Weight:  0.382 Kg
• Access port:  No
• Approval:  ULC
• Cv-value USgal/min:  14,090
• Factory setting bar:  2,00 bar
• Factory setting psig:  29,0 psig
• Inlet connection type:  SOLDER, ODF
• Inlet size in:  5/8 IN
• Inlet size mm:  16 MM
• Kv-value m³/h:  3,200
• Max. test pressure bar:  28,0 bar
• Max. test pressure psig:  405 psig
• Max. Working Pressure ef:  18,0 bar
• Max. Working Pressure:  260 Psig
• Medium temperature range °C:  -60 - 130 °C
• Medium temperature range °F:  -75 - 265 °F
• Outlet connection type:  SOLDER, ODF
• Outlet size in:  5/8 IN
• Outlet size mm:  16 MM
• P band max. bar:  2,0 bar
• P band max. psi:  29,0 psi
• Product description:  Crankcase Pres. Reg.
• Rated capacity R134a kW:  5,30 kW
• Rated capacity R134a TR:  0,80 TR
• Rated capacity R22 kW:  7,10 kW
• Rated capacity R22 TR:  1,20 TR
• Rated capacity R404A/R507 kW:  6,30 kW
• Rated capacity R404A/R507 TR:  1,00 TR
• Rated capacity R407C kW:  6,50 kW
• Rated capacity R407C TR:  1,10 TR
• Refrigerant(s):  CFC
• Refrigerant(s):  HCFC
• Refrigerant(s):  HFC
• Regulating range bar:  0,2 - 6,0 bar
• Regulating range psi:  3 - 87 psi
