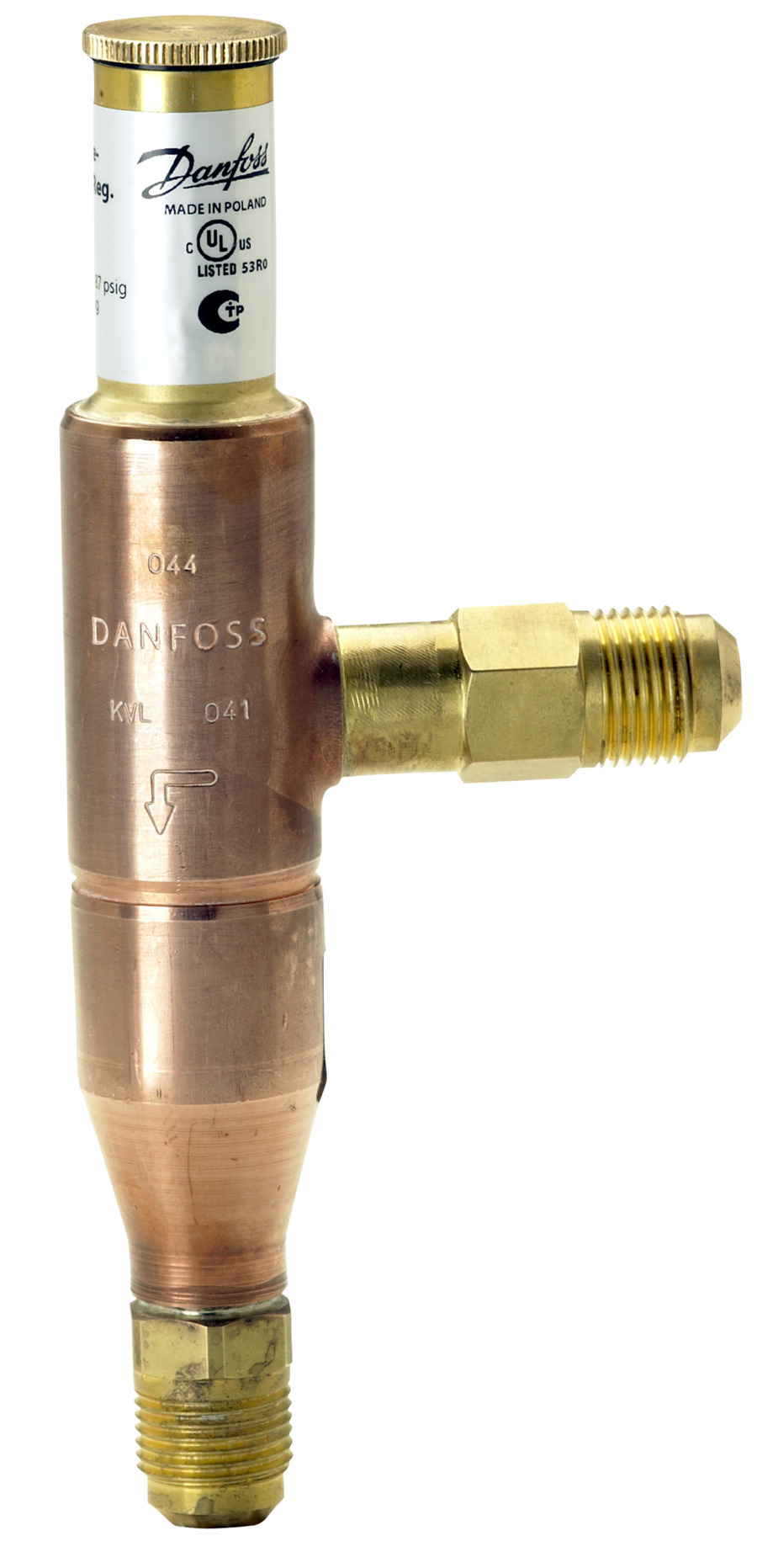

Crankcase pressure regulator, KVL 15 5/8" Flare

034L0042

Product Description

Danfoss Pressure Regulating Valve CPR 5/8 Flare

Regulating range 0.2 - 6.0 bar, factory setting 2 bar, max. working pressure 18 bar.
Access port: ¼ in. Schraeder valve for pressure testing.
Max. test pressure:  KVL 12 -22 = 28 bar, KVL 28 - 35 = 25.6 bar
Maximum P-band:  KVL 12 - 22 = 2.0 bar, KVL 28 - 35 = 1.5 bar
Rated capacities: see technical literature

Characteristics:

  • Type:  KVL 15
  • Weight:  0.468 Kg
  • Access port:  No
  • Approval:  ULC
  • Cv-value USgal/min:  14,090
  • Factory setting bar:  2,00 bar
  • Factory setting psig:  29,0 psig
  • Inlet connection type:  Flare
  • Inlet size in:  5/8 IN
  • Inlet size mm:  16 MM
  • Kv-value m³/h:  3,200
  • Max. test pressure bar:  28,0 bar
  • Max. test pressure psig:  405 psig
  • Max. Working Pressure ef:  18,0 bar
  • Max. Working Pressure:  260 Psig
  • Medium temperature range °C:  -60 - 130 °C
  • Medium temperature range °F:  -75 - 265 °F
  • Outlet connection type:  Flare
  • Outlet size in:  5/8 IN
  • Outlet size mm:  16 MM
  • P band max. bar:  2,0 bar
  • P band max. psi:  29,0 psi
  • Product description:  Crankcase Pres. Reg.
  • Rated capacity R134a kW:  5,30 kW
  • Rated capacity R134a TR:  0,80 TR
  • Rated capacity R22 kW:  7,10 kW
  • Rated capacity R22 TR:  1,20 TR
  • Rated capacity R404A/R507 kW:  6,30 kW
  • Rated capacity R404A/R507 TR:  1,00 TR
  • Rated capacity R407C kW:  6,50 kW
  • Rated capacity R407C TR:  1,10 TR
  • Refrigerant(s):  CFC
  • Refrigerant(s):  HCFC
  • Refrigerant(s):  HFC
  • Regulating range bar:  0,2 - 6,0 bar
  • Regulating range psi:  3 - 87 psi
