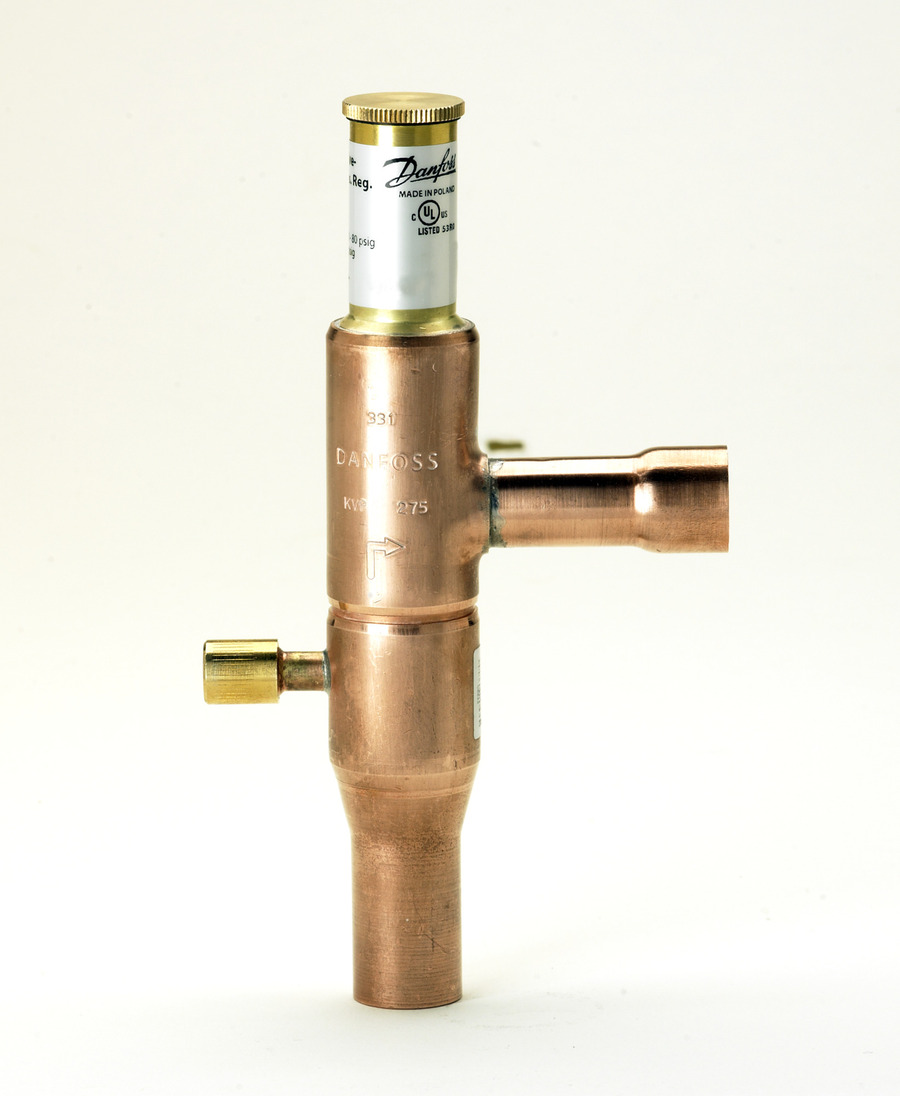

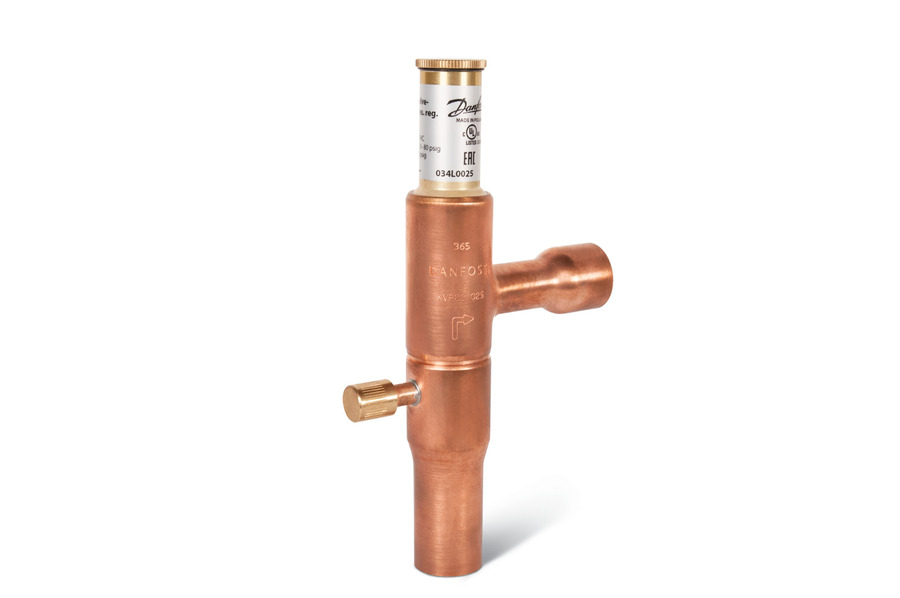

Danfoss Pressure Regulating Valve

Regulating range 0 - 5.5 bar, factory setting 2 bar, max. working pressure 18 bar.
Access port: ¼ in. Schraeder valve for pressure testing.
Max. test pressure:  KVP 12 - 22 = 28 bar, KVP 28 - 35 = 25.6 bar

Characteristics:

• Type  KVP 28
• Weight kg  1.016 kg
• Access port  Yes
• Approval  ULC
• Cv-value USgal/min  35,220
• Factory setting bar  2,00 bar
• Factory setting psig  29,0 psig
• Identical product  034L1076
• Inlet connection type  SOLDER, ODF
• Inlet size in  1 1/8 in
• Kv-value m³/h  8,000
• Max. test pressure bar  25,0 bar
• Max. test pressure psig  365 Psig
• Max. Working Pressure ef  18,0 bar
• Max. Working Pressure  260 Psig
• Medium temperature range °C  -45 - 130 °C
• Medium temperature range °F  -50 - 265 °F
• Outlet connection type  SOLDER, ODF
• Outlet size in  1 1/8 in
• P band max. bar  1,5 bar
• P band max. psi  22,0 psi
• Product description  Evaporator Pres. Reg.
• Rated capacity R134a kW  6,10 kW
• Rated capacity R134a TR  1,90 TR
• Rated capacity R22 kW  8,60 kW
• Rated capacity R22 TR  2,80 TR
• Rated capacity R404A/R507 kW  7,70 kW
• Rated capacity R404A/R507 TR  2,40 TR
• Rated capacity R407C kW  7,90 kW
• Rated capacity R407C TR  2,60 TR
• Refrigerant(s)  CFC
• Refrigerant(s)  HCFC
• Refrigerant(s)  HFC
• Regulating range bar  0,0 - 5,5 bar
• Regulating range psi  0 - 80 psi
