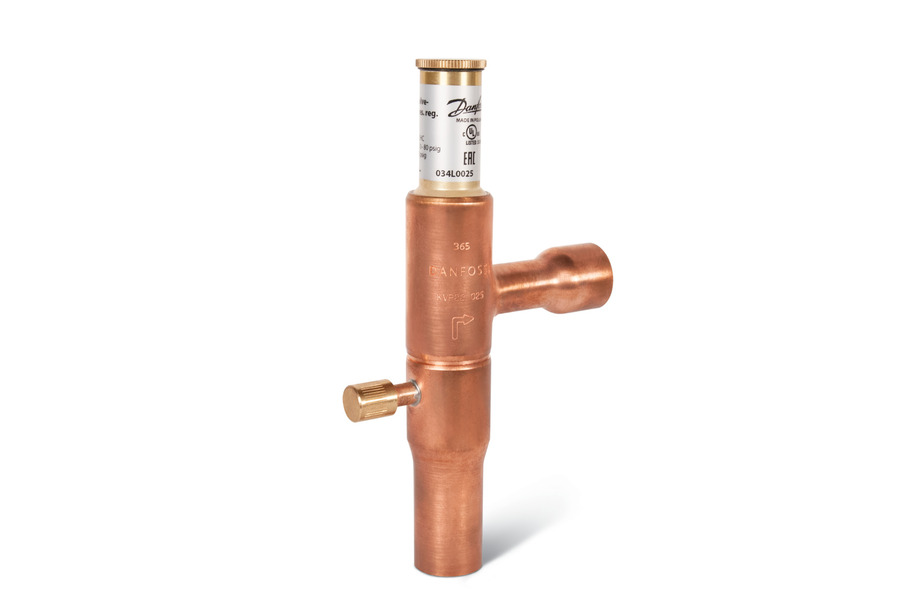

Evaporator pressure regulator, KVP 22 7/8" Solder

034L0025

Product Description

Danfoss Pressure Regulating Valve

Regulating range 0 - 5.5 bar, factory setting 2 bar, max. working pressure 18 bar.
Access port: ¼ in. Schraeder valve for pressure testing.
Max. test pressure:  KVP 12 - 22 = 28 bar, KVP 28 - 35 = 25.6 bar

Characteristics:

  • Type  KVP 22
  • Weight kg  0.416 kg
  • Access port  Yes
  • Approval  ULC
  • Cv-value USgal/min  11,010
  • Factory setting bar  2,00 bar
  • Factory setting psig  29,0 psig
  • Inlet connection type  SOLDER, ODF
  • Inlet size in  7/8 in
  • Inlet size mm  22 MM
  • Kv-value m³/h  2,500
  • Max. test pressure bar  28,0 bar
  • Max. test pressure psig  405 psig
  • Max. Working Pressure ef  18,0 bar
  • Max. Working Pressure  260 Psig
  • Medium temperature range °C  -45 - 105 °C
  • Medium temperature range °F  -50 - 220 °F
  • Outlet connection type  SOLDER, ODF
  • Outlet size in  7/8 in
  • Outlet size mm  22 MM
  • P band max. bar  2,0 bar
  • P band max. psi  29,0 psi
  • Product description  Evaporator Pres. Reg.
  • Rated capacity R134a kW  2,80 kW
  • Rated capacity R134a TR  0,90 TR
  • Rated capacity R22 kW  4,00 kW
  • Rated capacity R22 TR  1,30 TR
  • Rated capacity R404A/R507 kW  3,60 kW
  • Rated capacity R404A/R507 TR  1,20 TR
  • Rated capacity R407C kW  3,70 kW
  • Rated capacity R407C TR  1,20 TR
  • Refrigerant(s)  CFC
  • Refrigerant(s)  HCFC
  • Refrigerant(s)  HFC
  • Regulating range bar  0,0 - 5,5 bar
  • Regulating range psi  0 - 80 psi
