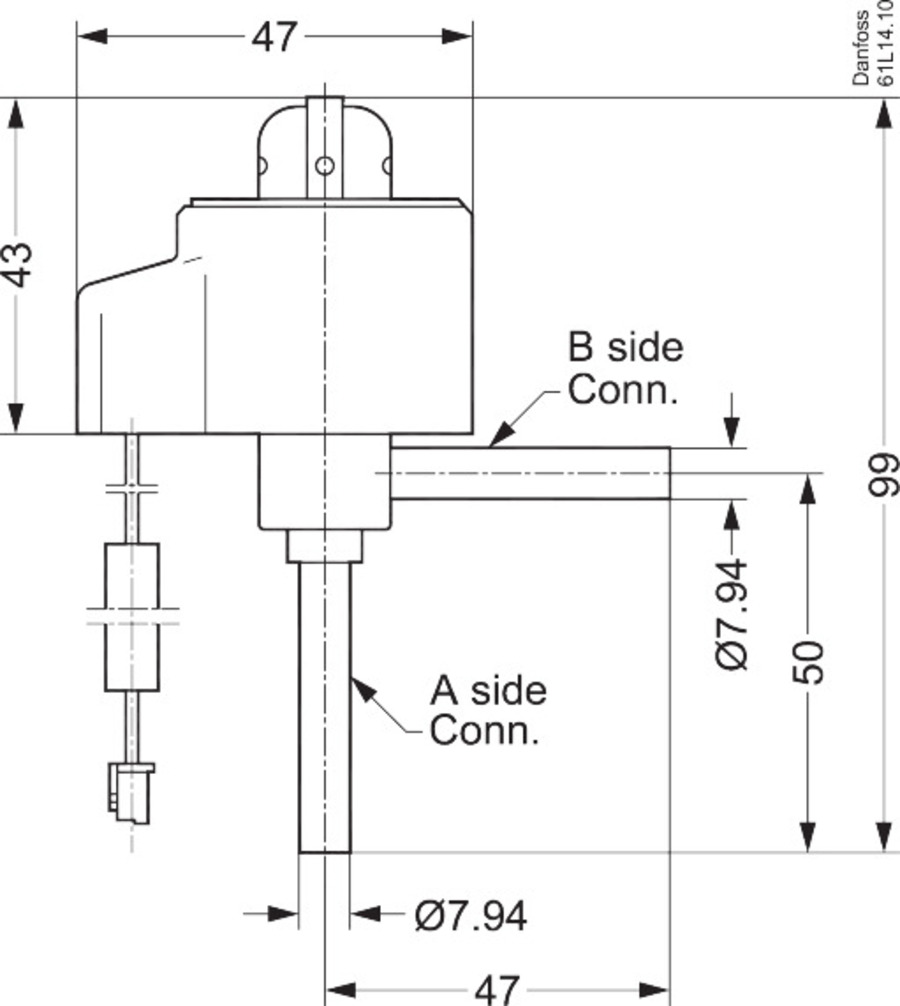

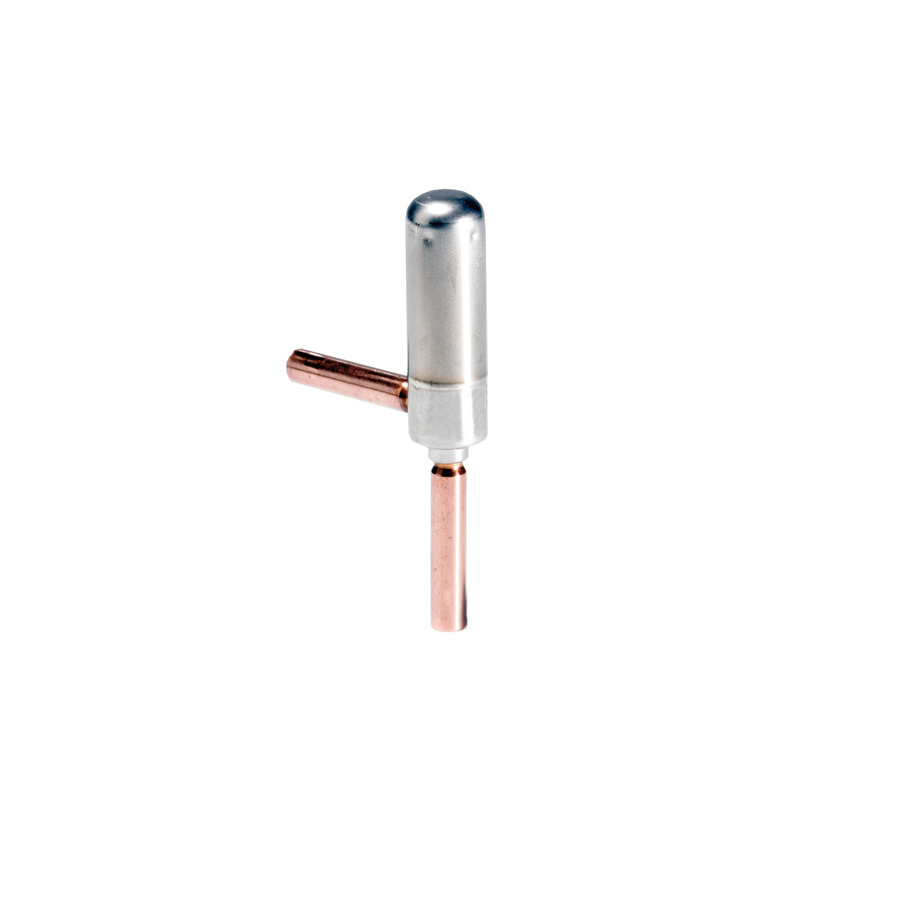

Electric expansion valve, ETS 6-32 5/16"

034G5055

Product Description

ETS 6 is a compact and lightweight electric expansion valve.

Product Features:

  • Optimized energy efficiency of the system.
  • Precision flow control with high resolution.
  • Compact and lightweight.
  • Energy saving design.
  • Proven know-how and high reliability.
  • The current range is available with different capacities, and can be used with all common refrigerants (R410A, R407C, R404A, R134a, R22).
  • Bi-flow for heat pump applications.

The valve design uses uni-polar drives, and different control solutions exist that are compatible with uni-polar drives. With a Danfoss EKD 316 and EIM 336 (current driver) and an AKS sensor, an accuracy better than +/-0.5 K can be obtained.
