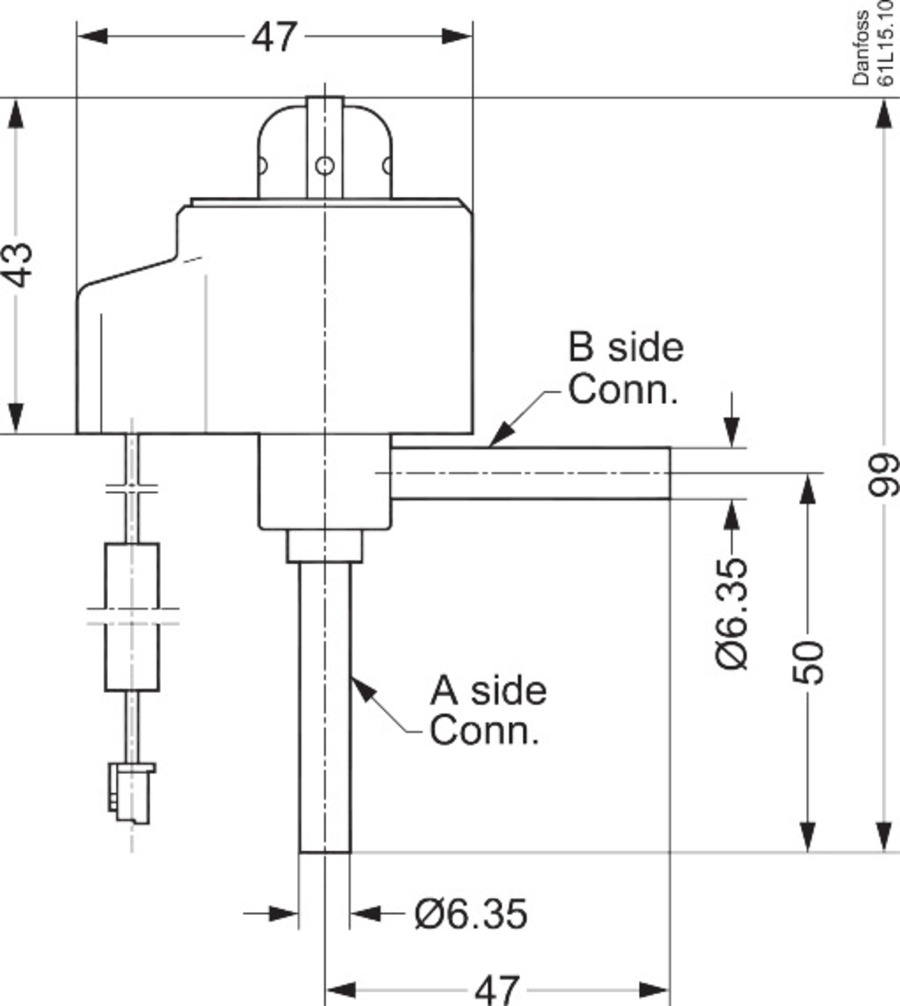

ETS 6 is a compact and lightweight electric expansion valve.

Product Features:

• Optimized energy efficiency of the system.
• Precision flow control with high resolution.
• Compact and lightweight.
• Energy saving design.
• Proven know-how and high reliability.
• The current range is available with different capacities, and can be used with all common refrigerants (R410A, R407C, R404A, R134a, R22).
• Bi-flow for heat pump applications.


The valve design uses uni-polar drives, and different control solutions exist that are compatible with uni-polar drives. With a Danfoss EKD 316 and EIM 336 (current driver) and an AKS sensor, an accuracy better than +/-0.5 K can be obtained.
