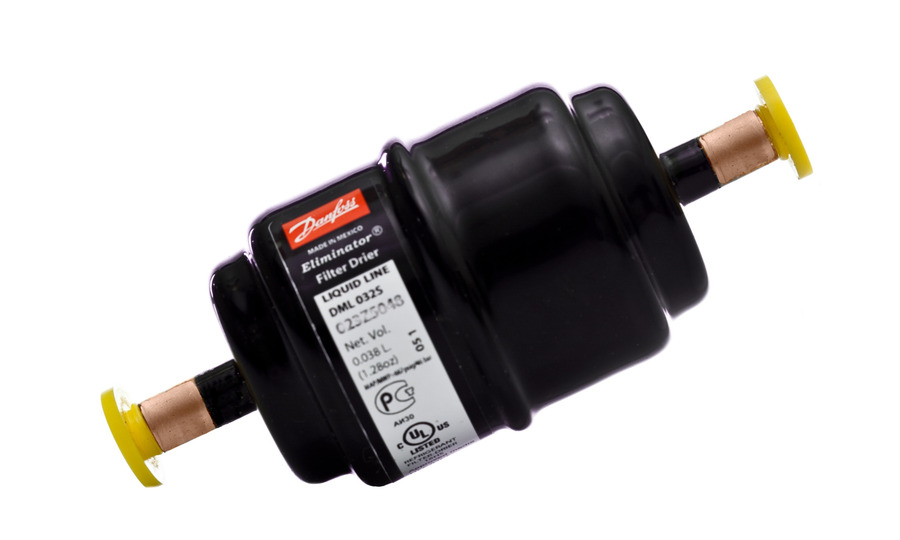

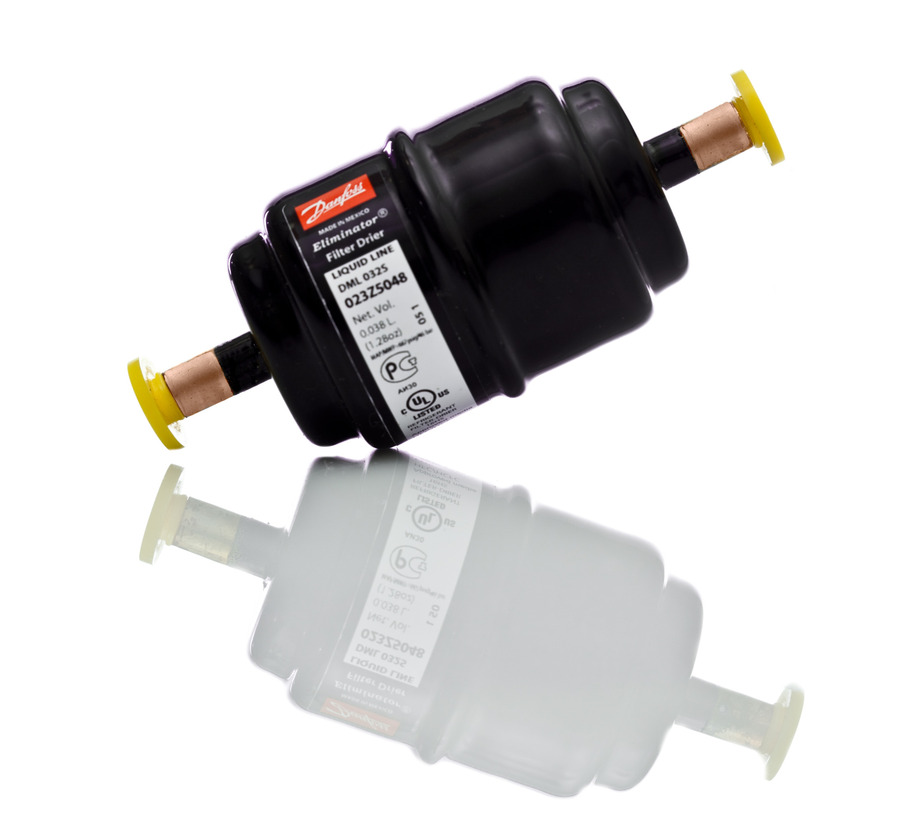

Danfoss - Liquid Line Drier DML032S - 1/4" Solder

023Z5048

Product Description

  • Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3… Molecular Sieve.
  • Temperature range: -40°C - +70°C.
  • Type: DML 032S
  • Weight: 0.148 Kg
  • Acid capacity [g]: 0,58 g
  • Acid capacity [oz]: 0,021 oz
  • Approval: UL
  • Connection material: COPPER
  • Core size: 03 cu.in.
  • Inlet connection size [in]: 1/4 IN
  • Inlet connection type: SOLDER, ODF
  • Max. Working Pressure [bar]: 46,0 bar
  • Max. Working Pressure [psig]: 667 psig
  • Net volume [foz US]: 1,28 foz US
  • Net volume [l]: 0,038 l
  • Outlet connection size [in]: 1/4 IN
  • Outlet connection type: SOLDER, ODF
  • Refrigerant(s): HCFC/HFC/HC
  • Temperature range [°C]: -40 to 70 °C
  • Temperature range [°F]: -40 to 160 °F
