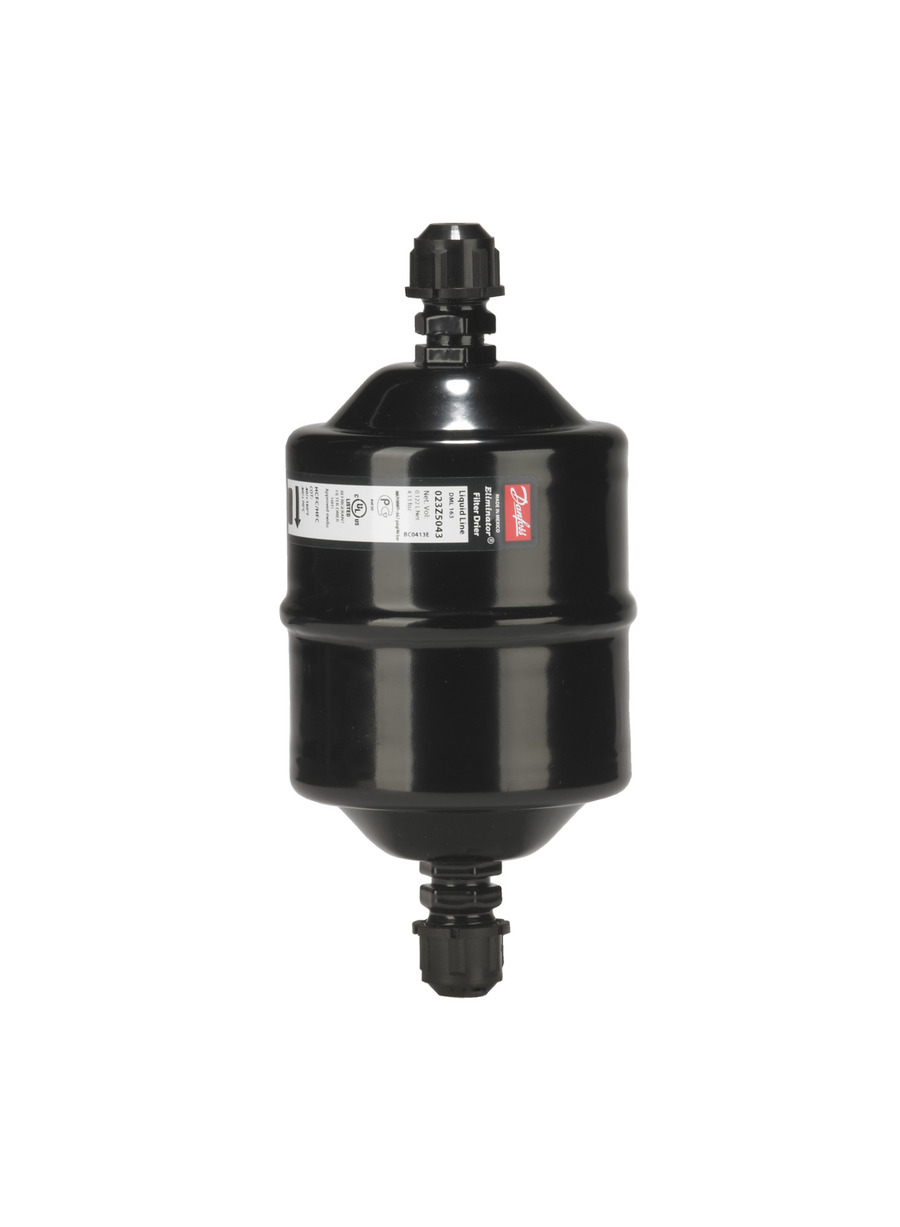

Danfoss - Liquid Line Drier DML163 - 3/8" Flare

023Z5043

Product Description

  • Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3… Molecular Sieve.
  • Temperature range: -40°C - +70°C.
  • Type: DML 163
  • Weight: 0.678 Kg
  • Acid capacity [g]: 3,12 g
  • Acid capacity [oz]: 0,110 oz
  • Approval: UL
  • Connection material: STEEL
  • Core size: 16 cu.in.
  • Inlet connection size [in]: 3/8 IN
  • Inlet connection size [mm]: 10 mm
  • Inlet connection type: Flare
  • Max. Working Pressure [bar]: 46,0 bar
  • Max. Working Pressure [psig]: 667 psig
  • Net volume [foz US]: 4,13 foz US
  • Net volume [l]: 0,122 l
  • Outlet connection size [in]: 3/8 IN
  • Outlet connection size [mm]: 10 mm
  • Outlet connection type: Flare
  • Refrigerant(s): HCFC/HFC
  • Temperature range [°C]: -40 to 70°C
  • Temperature range [°F]: -40 to 160°F
