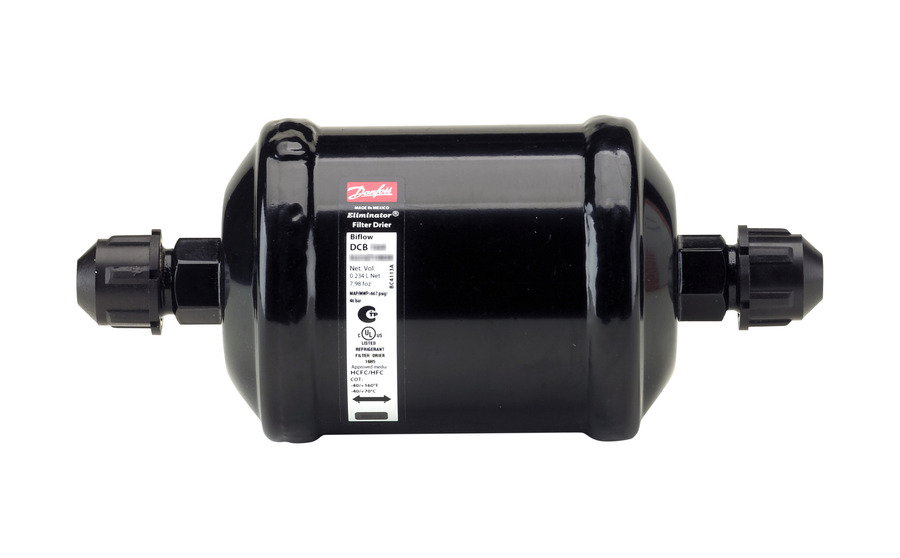

Danfoss - Bi Flow Drier DCB165 5/8" Flare

023Z1403

Product Description

  • Optimized for HCFC/HFC refrigerants and mineral or alkyl benzene oils.
  • 80% 3… Molecular Sieve with 20% activated alumina.
  • Temperature range: -40°C - +70°C.
  • Max. working pressure: 42 bar.
  • Dirt retention: Particles larger than 25 µm.
  • Type: DCB 165
  • Weight: 0.996 Kg
  • Acid capacity [g]: 1,29 g
  • Acid capacity [oz]: 0,046 oz
  • Approval: UL
  • Connection material: STEEL
  • Core size; 16 cu.in.
  • Inlet connection size [in]: 5/8 IN
  • Inlet connection size [mm]: 16 MM
  • Inlet connection type: Flare
  • Max. Working Pressure [bar]: 46,0 bar
  • Max. Working Pressure [psig]: 667 psig
  • Outlet connection size [in]: 5/8 IN
  • Outlet connection size [mm]: 16 MM
  • Outlet connection type: Flare
  • Refrigerant(s): HCFC/HFC
  • Temperature range [°C]: -40 to 70°C
  • Temperature range [°F]: -40 to 160°F
