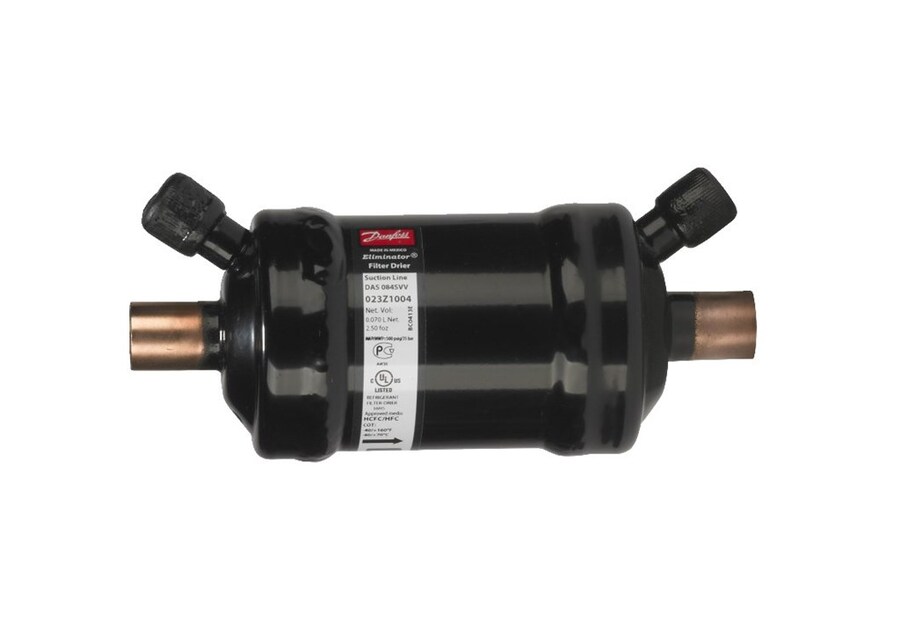

Danfoss - Suction Line Drier 084S 1/2" ODS

023Z1004

Product Description

Hermetic burn-out filter drier for fluorinated refrigerants.
70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
2 Schrader access valves to measure pressure drop across the drier.
Max. working pressure: 35 bar.
120 mesh wire mesh for solid particle retention.

  • Type: DAS 084SVV
  • Weight: 0.341 Kg
  • Acid capacity [g]: 3,80 g
  • Acid capacity [oz]: 0,134 oz
  • Approval: UL
  • Connection material: COPPER
  • Connection notes  Schraeder Inlet / Outlet
  • Core size: 08 cu.in.
  • Inlet connection size [in]: 1/2 IN
  • Inlet connection type: SOLDER, ODF
  • Max. Working Pressure [bar]: 35,0 bar
  • Max. Working Pressure [psig]: 500 psig
  • Outlet connection size [in]: 1/2 IN
  • Outlet connection type: SOLDER, ODF
  • Temperature range [°C]  -40 to 70 °C
  • Temperature range [°F]  -40 to 160 °F
