Optimized for HFC and HCFC refrigerants and mineral or alkyl benzene oils. 80% 3Å Molecular Sieve with 20% activated alumina. Temperature range: -40°C - +70°C.

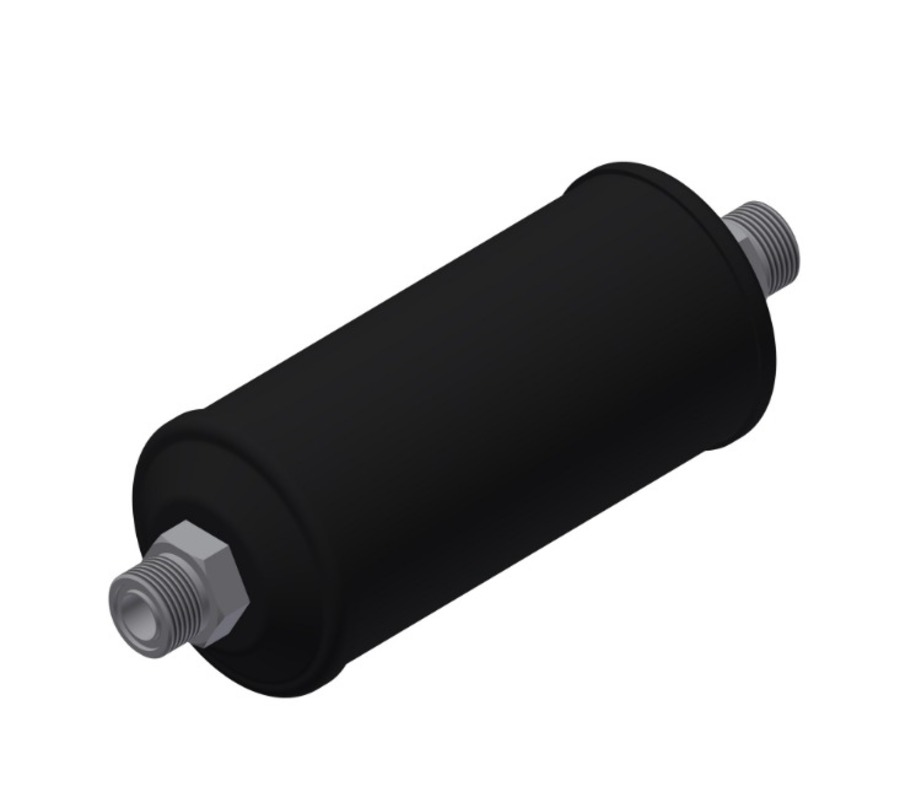

- Type: DCL 305FS
- Weight: 1.43 Kg
- Acid capacity [g]: 6,40 g
- Acid capacity [oz]: 0,226 oz
- Approval: UL
- Connection material: STEEL
- Core size: 30 cu.in.
- Inlet connection size [in]: 5/8 IN
- Inlet connection type: Face Seal
- Max. Working Pressure [bar]: 46,0 bar
- Max. Working Pressure [psig]: 667 psig
- Net volume [foz US]: 7,57 foz US
- Net volume [l]: 0,224 l
- Outlet connection size [in]: 5/8 IN
- Outlet connection type; Face Seal
- Temperature range [°C] -40 to 70 °C
- Temperature range [°F] -40 to 160 °F
