Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3… Molecular Sieve. Temperature range: -40°C - +70°C.

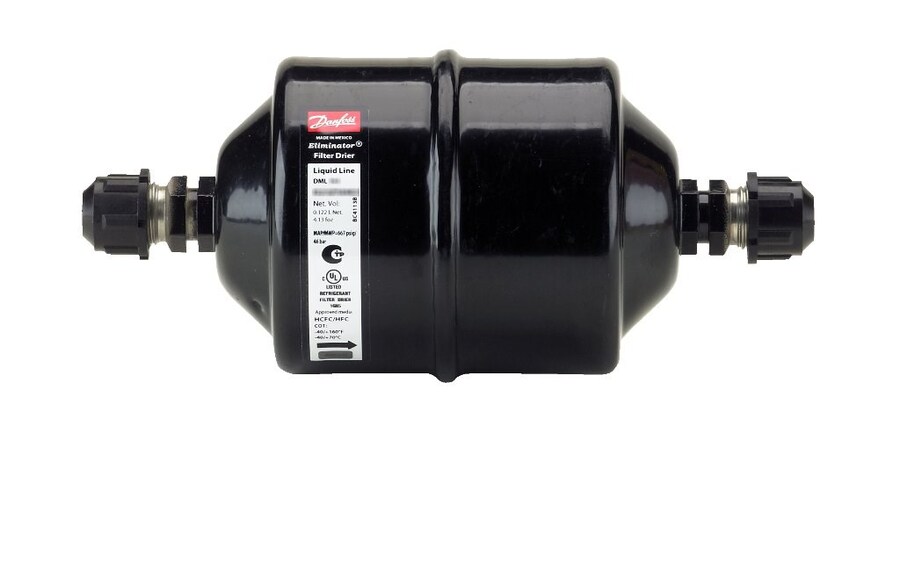

• Type: DML 415
• Weight: 1.87 Kg
• Acid capacity [g]: 8,90 g
• Acid capacity [oz]: 0,314 oz
• Approval: UL
• Connection material: STEEL
• Core size: 41 cu.in.
• Inlet connection size [in]: 5/8 IN
• Inlet connection size [mm]: 16 MM
• Inlet connection type: Flare
• Max. Working Pressure [bar]: 46,0 bar
• Max. Working Pressure [psig]: 667 psig
• Outlet connection size [in]: 5/8 IN
• Outlet connection size [mm]: 16 MM
• Outlet connection type: Flare
• Temperature range [°C]  -40 to 70 °C
• Temperature range [°F]  -40 to 160 °F
